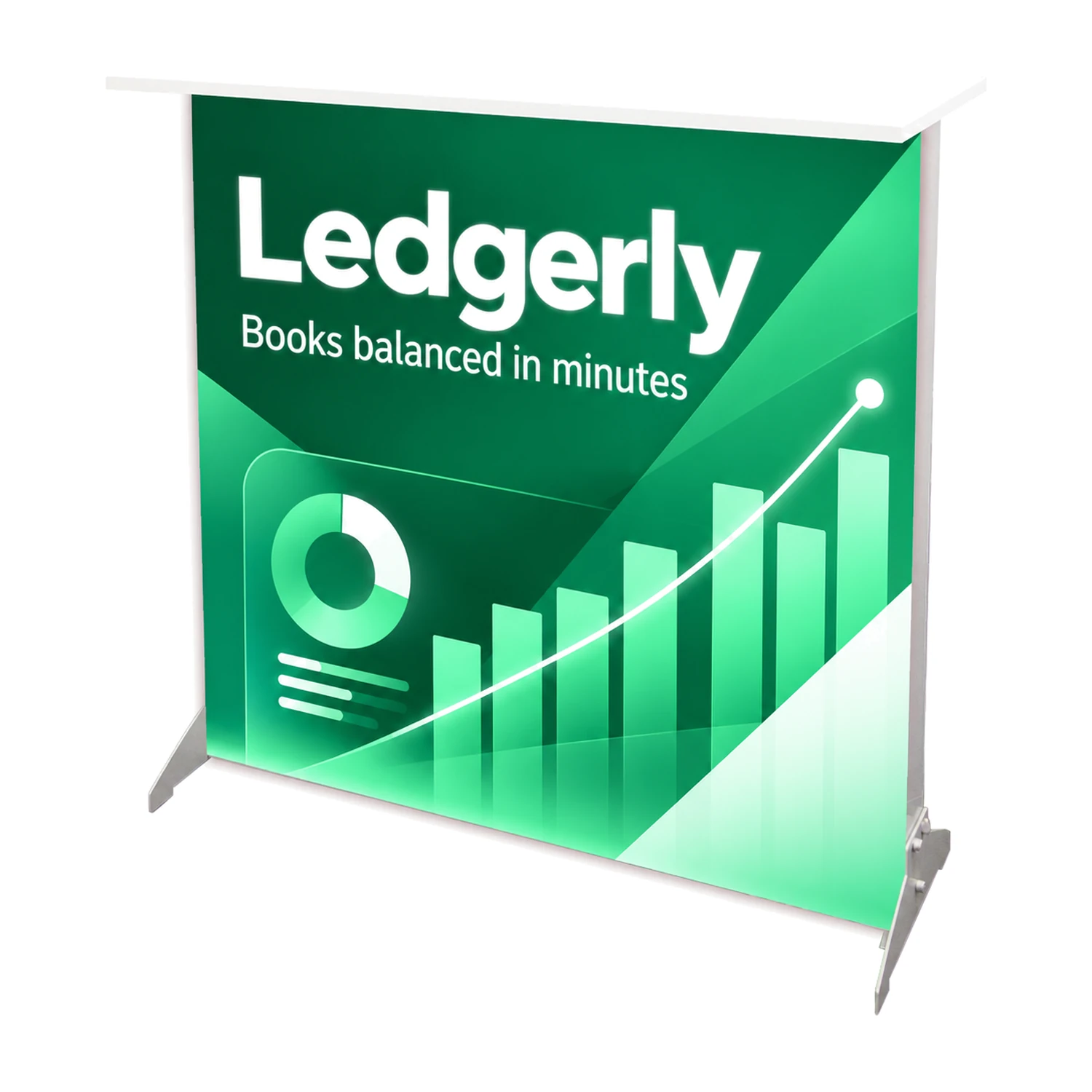

Illumigo Illuminated Counter with example artwork

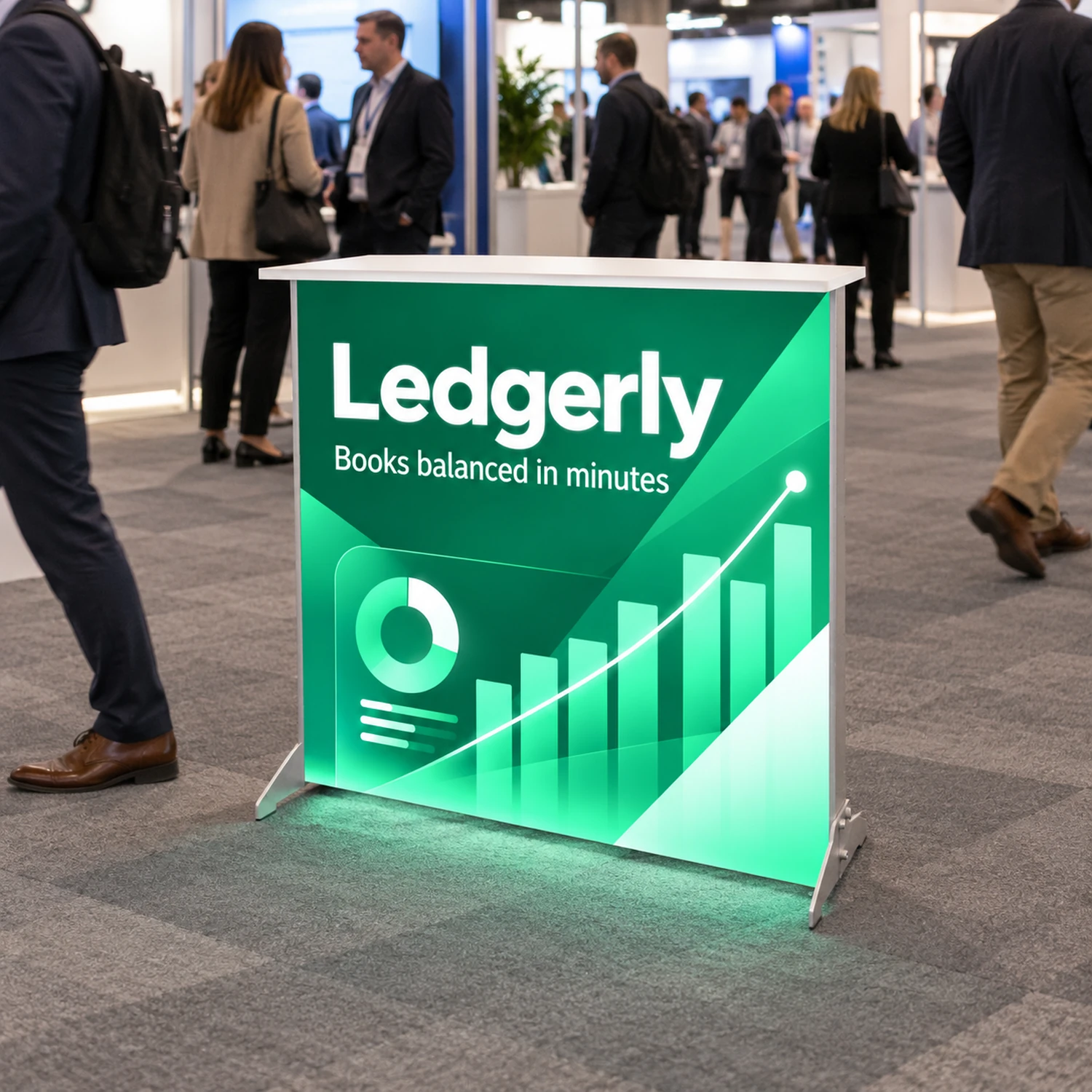

Illumigo Illuminated Counter in use at an event

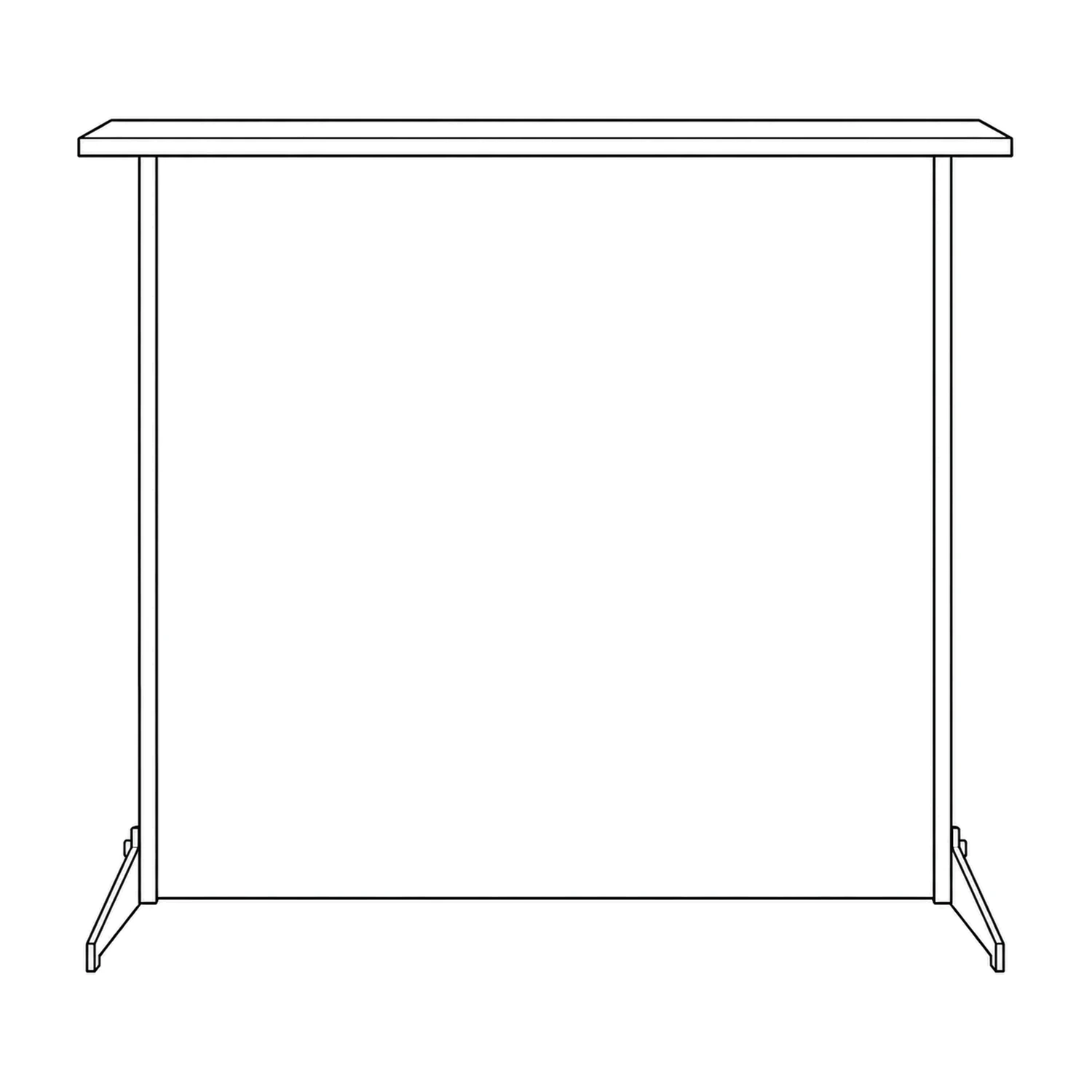

Illumigo Illuminated Counter line drawing

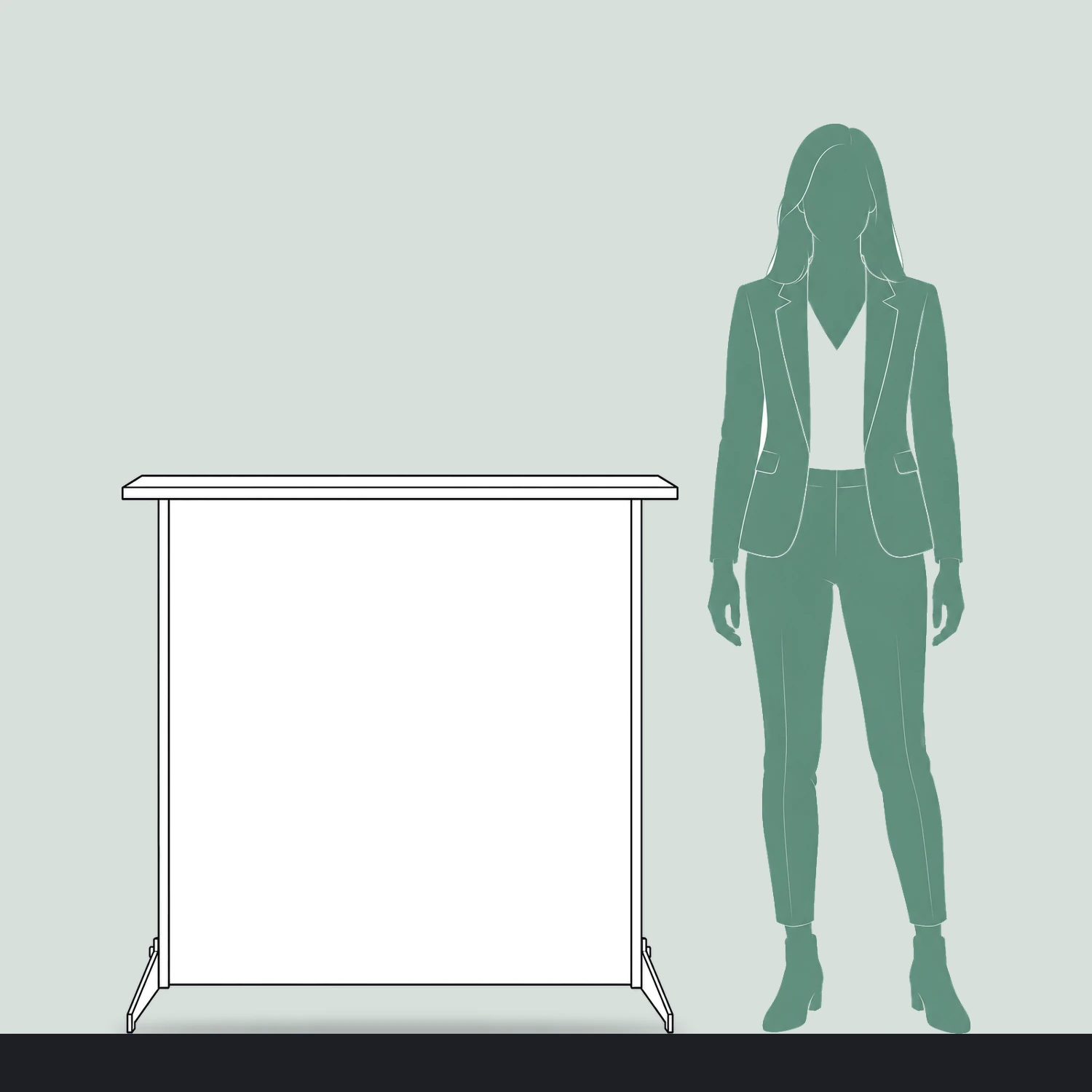

Illumigo Illuminated Counter size compared with a person

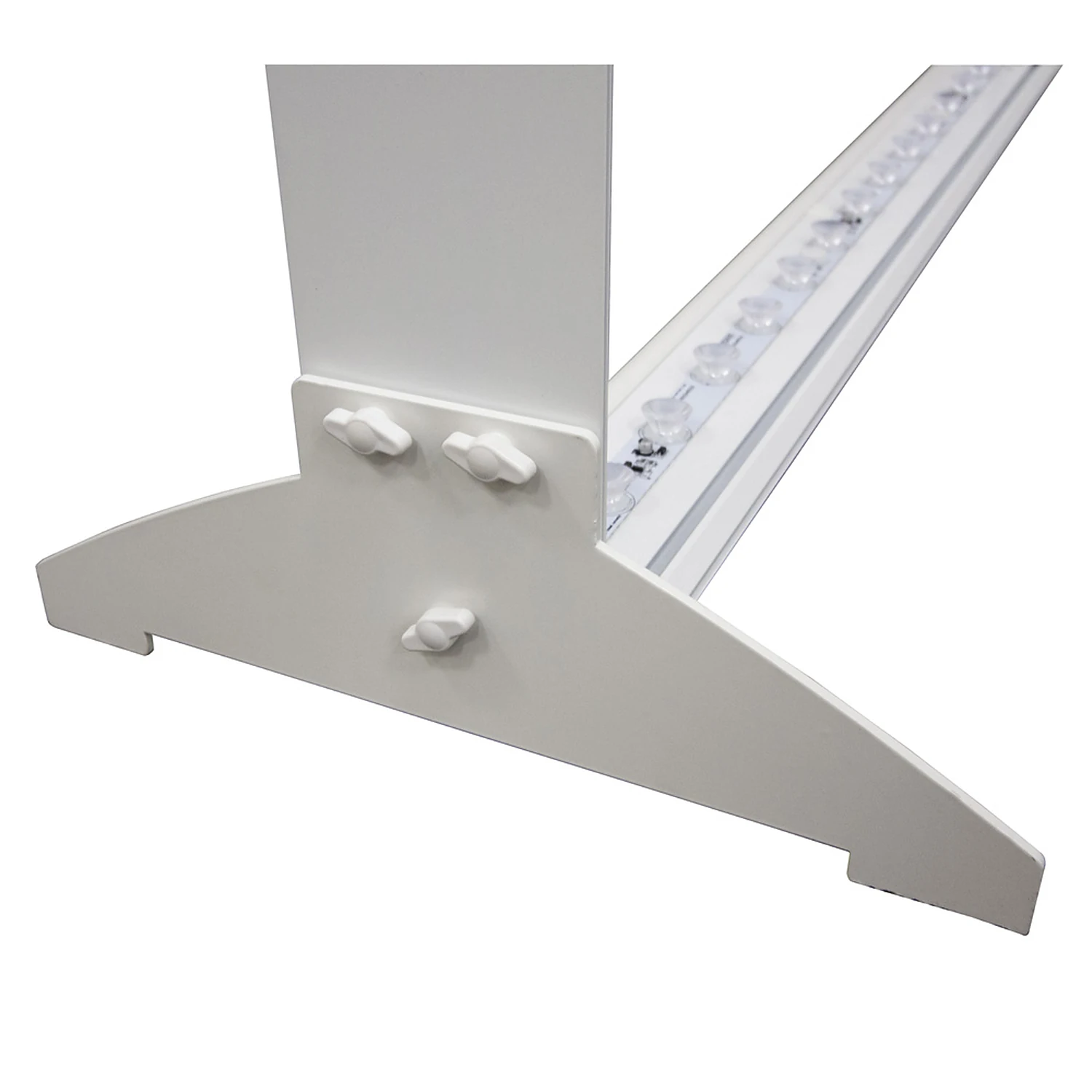

Counter foot plate with thumb screws and LED strip

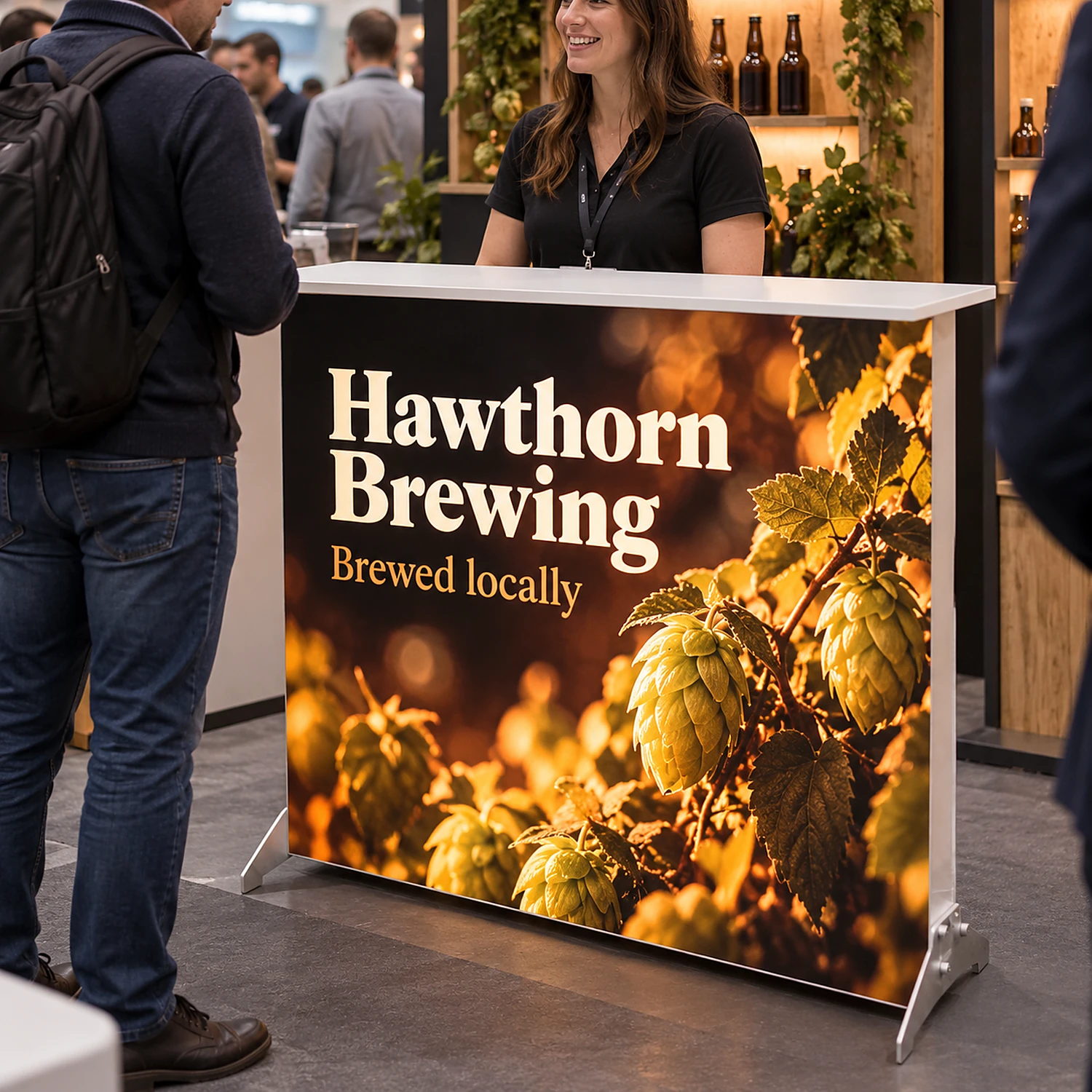

Illuminated lightbox counter in use at a trade show

Illumigo Illuminated Counter

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£384.95 ex VATinc VAT

Free Instant Mockup
  • Illuminated counter, 1.04m wide x 1.04m high x 420mm deep
  • Printed 175gsm backlit SEG fabric front
  • LED edge lighting already fitted, plug in and go
  • Tool-free build in under ten minutes
  • Shelf inside, compartmented carry case included
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£384.95 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A portable counter that lights up. Its front is a backlit graphic panel and its white top gives you a 1.04m by 420mm surface for brochures, samples or a tablet. Use it on an exhibition stand, at a pop-up shop or in a reception area where you want your brand to catch the eye at desk height.

Tech specs

  • Assembled size: 1040mm (W) x 1045mm (H) x 420mm (D)
  • Weight: 14.2kg
  • Printed sides: Single sided
  • Frame: 100mm aluminium profile, white powder coated
  • Top: Two-part white MDF top, twist-out locators and locking screws
  • Shelf load: Up to 20kg, evenly spread
  • Lighting: Pre-fitted LED edge lighting
  • Graphic: 175gsm backlit polyester fabric, silicone edge graphic (SEG)
  • Power: Mains, cable exits under the base
  • Case: Compartmented protective case with carry handle
  • Use: Indoor

Up and lit in minutes

The white powder-coated aluminium frame comes in numbered parts that slot and click together without tools. The LED edge lighting is already fitted, so you build the frame, press the graphic into its channel and plug in. The two-part top locks in place with twist-out locators and locking screws, and the shelf inside takes up to 20kg spread evenly. Setting up takes under ten minutes.

Your backlit graphic

Your design is printed on 175gsm backlit fabric that spreads the light evenly for rich colour. A silicone edge pushes into the channel round the frame, so the face stays smooth and tight. This version is printed on the front. The frame takes graphics on both faces, so ask us if you want the back printed too, or if you would like recycled fabric.

Line up more than one

The power cable leaves through the base, so two or more counters can stand tight against each other to make a longer lit front. When the event is over, the counter packs into a compartmented protective case with a carry handle.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium
Assembly Tool-free

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Backlit Polyester + Stretch Polyester

Use & Portability

Use & Portability
Indoor / Outdoor Indoor

Power & Lighting

Power & Lighting
Lighting Pre-fitted LED edge lighting

Other Specifications

Other Specifications
LED Backlit Yes
Free Standing Yes
Width (mm) 1040
Height (mm) 1045
Depth (mm) 420
Frame 100mm aluminium, white
Top White MDF, two-part
Graphic Fabric 175gsm backlit polyester SEG

Guarantee

Guarantee
Hardware 1 year

Graphic

Graphic
Material Backlit polyester fabric, 175gsm
Print Method Dye sublimation
Finish Spreads the light evenly with no hot spots, so colours look bright and full when the lights are on.
Care Machine wash at 30°C with a mild detergent.

Frame & Hardware

Frame & Hardware
Frame 100mm aluminium, white
Top White MDF, two-part

Reuse and recycling

  • The aluminium frame is made to be put up and taken down event after event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.
  • Ask us about printing your graphic on recycled fabric.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Instructions and technical sheets

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area.

Read our full artwork guidelines

FAQs

How long does it take to set up?

Setting up takes under ten minutes. The numbered frame parts slot together without tools, the LED edge lighting is already fitted, and you press the graphic in and plug in.

Can I put two counters side by side?

Yes. The power cable leaves through the base, so two or more counters can stand tight against each other to make a longer lit front.

Is there storage inside?

Yes. There is a shelf inside that takes up to 20kg spread evenly.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.
