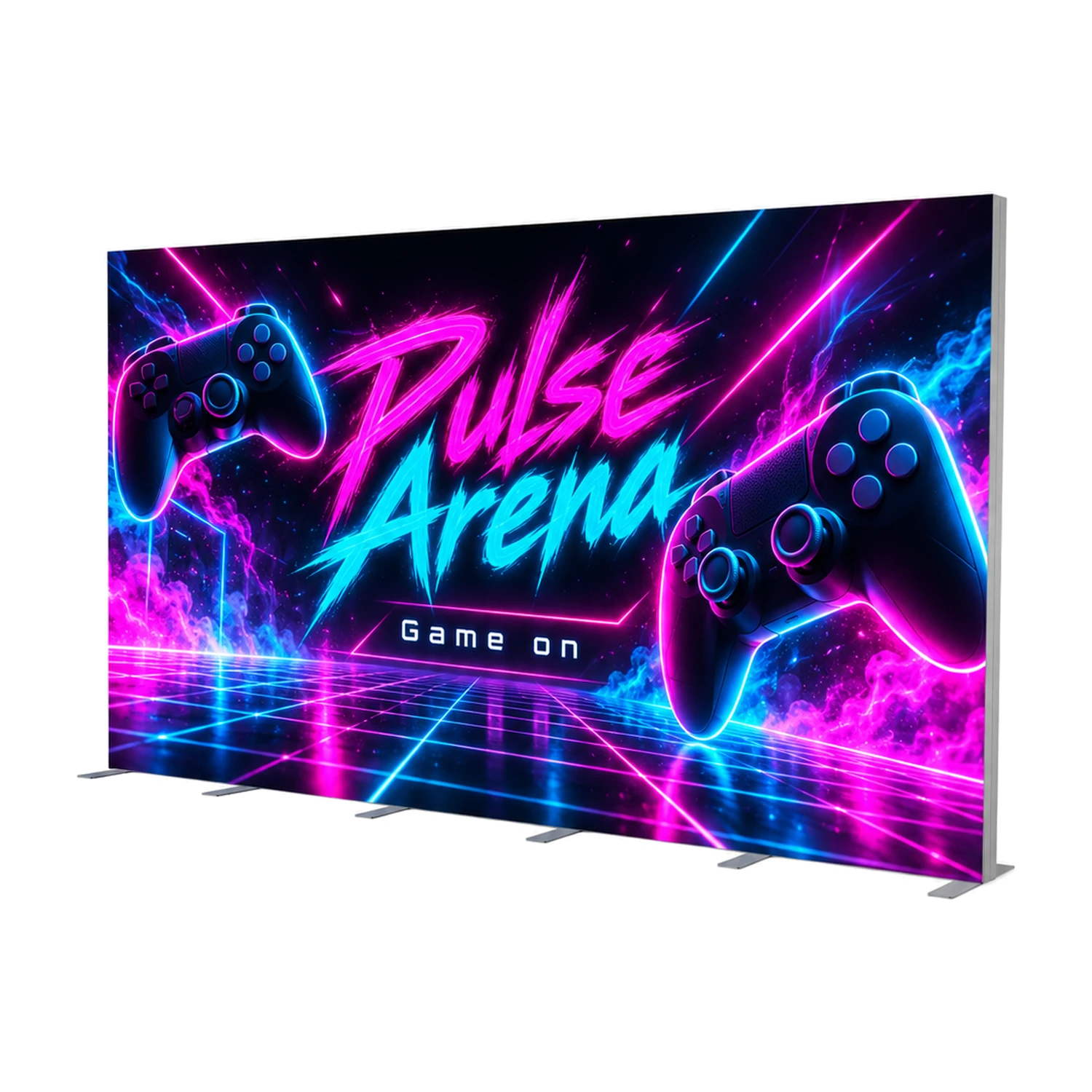

4.85m x 2.39m Illumigo Modular Freestanding LED Lightbox Wall with example artwork

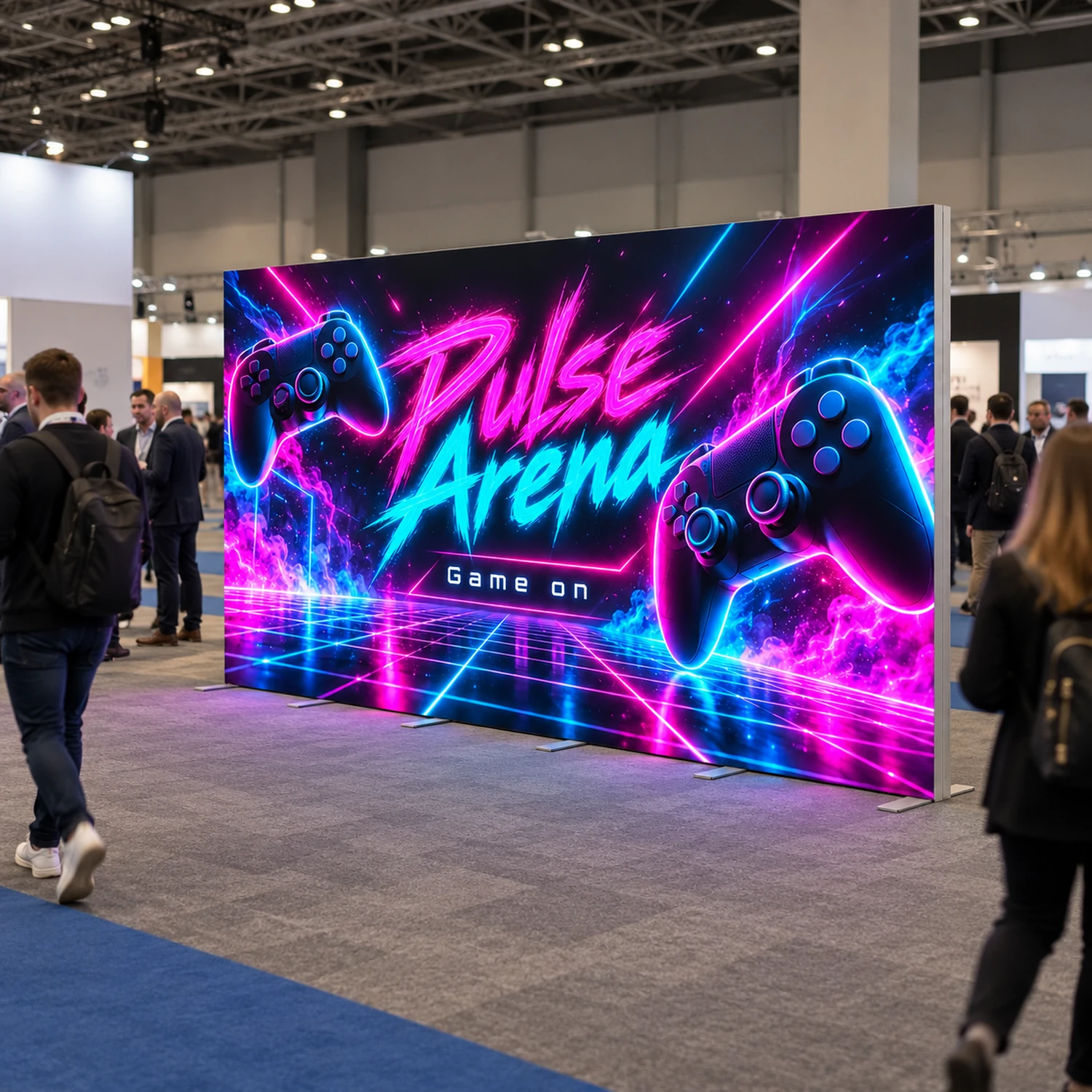

4.85m x 2.39m Illumigo Modular Freestanding LED Lightbox Wall in use at an event

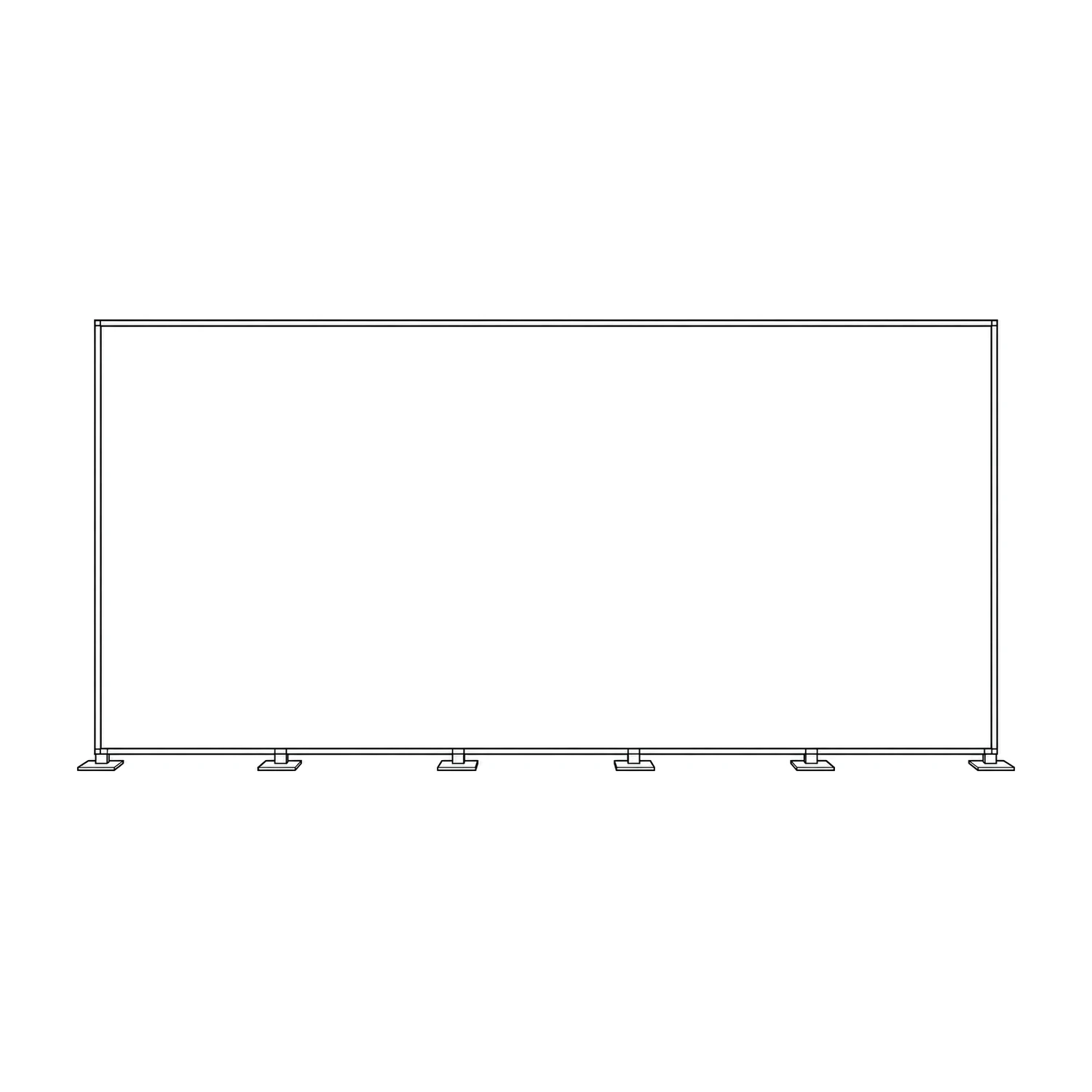

4.85m x 2.39m Illumigo Modular Freestanding LED Lightbox Wall line drawing

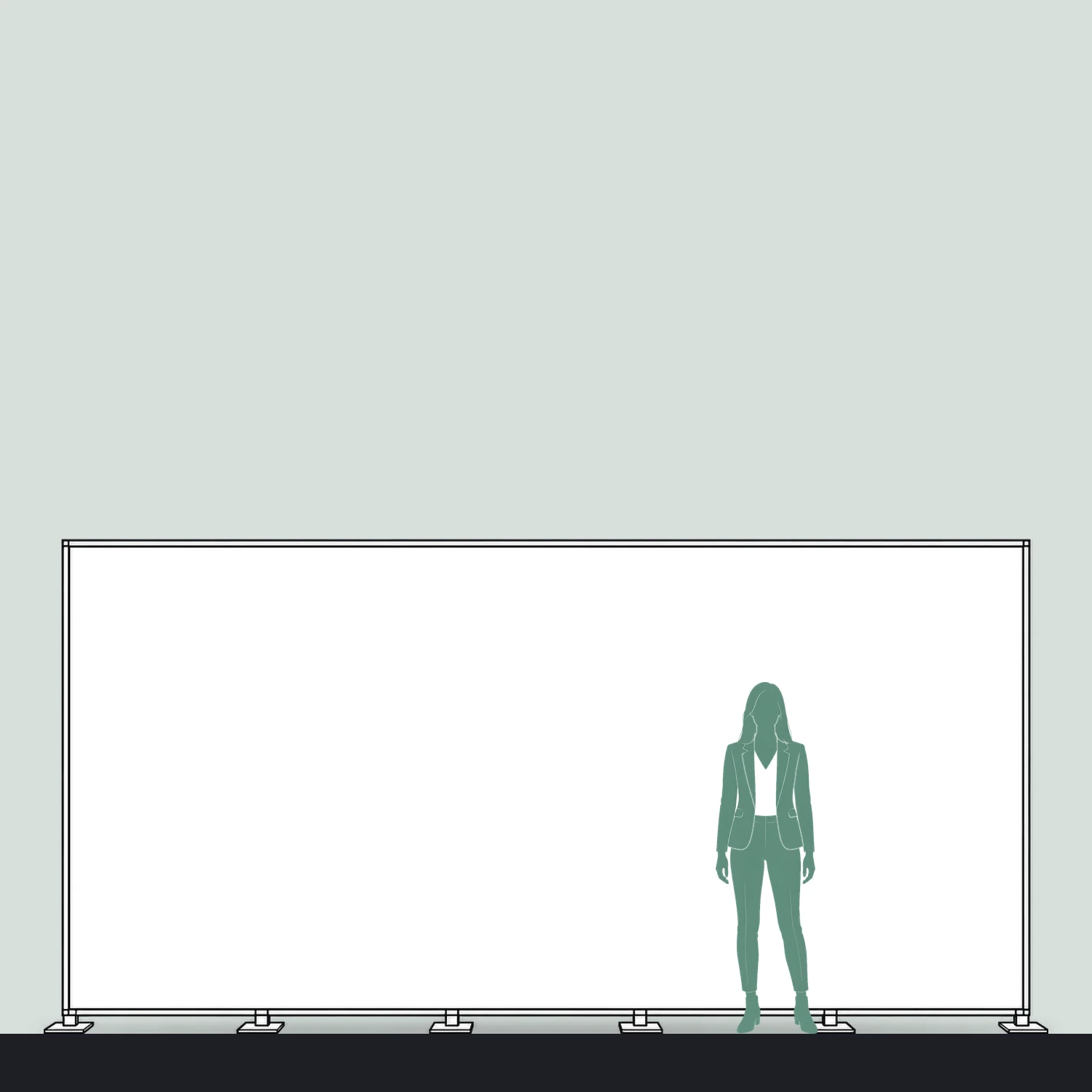

4.85m x 2.39m Illumigo Modular Freestanding LED Lightbox Wall size compared with a person

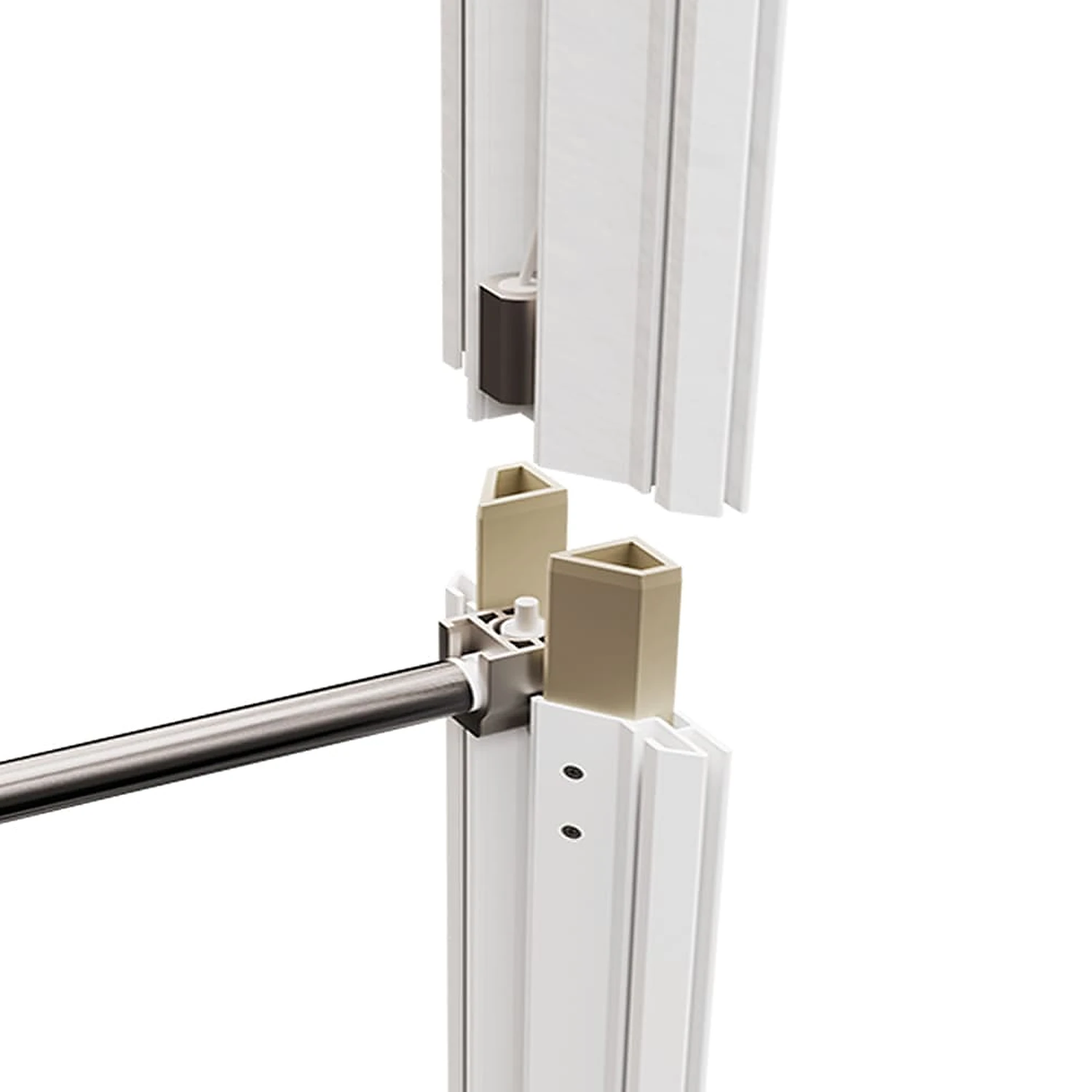

Lightbox frame connector block joining two profiles

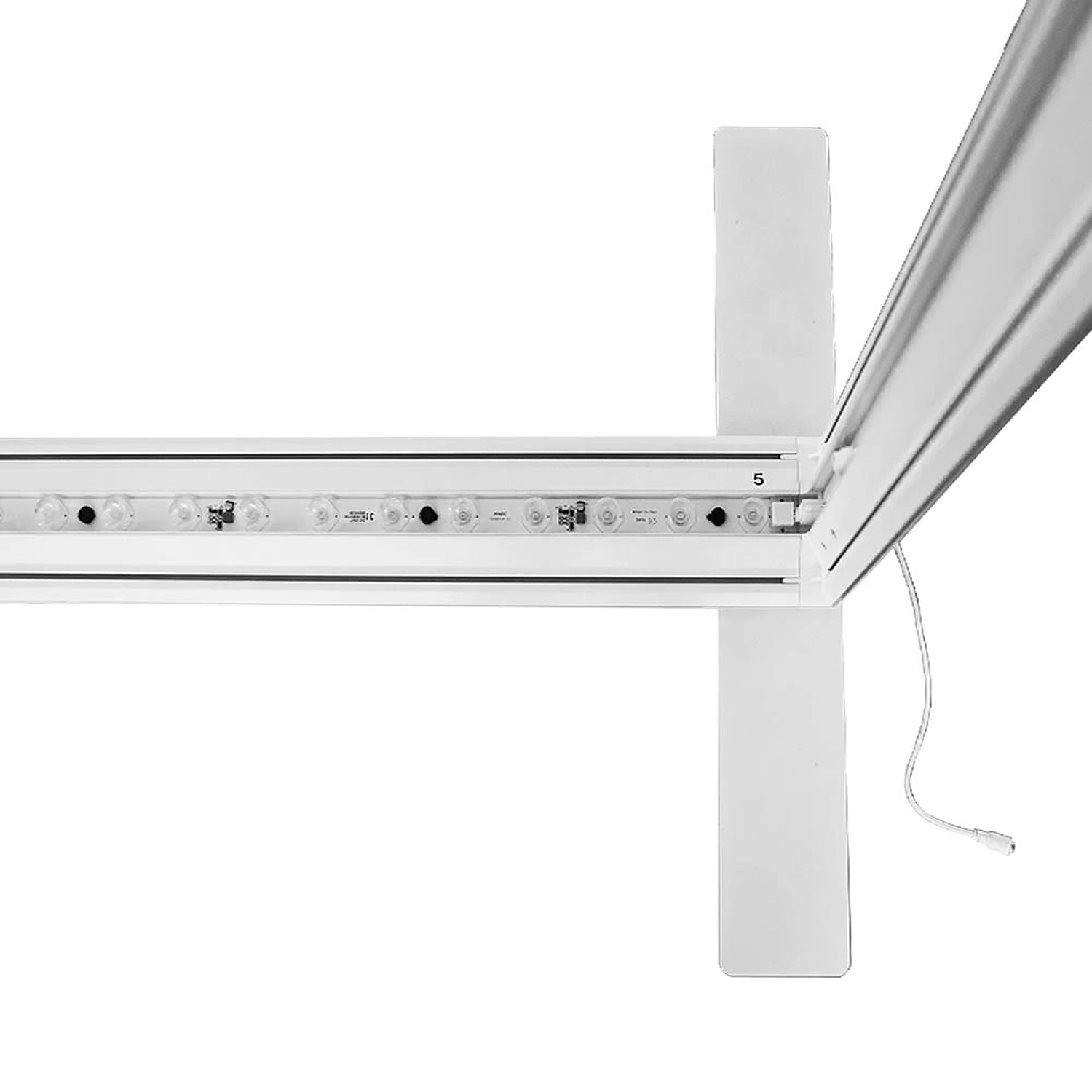

Lightbox bottom rail with LED strip and foot
LED power supply with cable

4.85m x 2.39m Illumigo Modular Freestanding LED Lightbox Wall

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£2,645.94 ex VATinc VAT

Free Instant Mockup
  • 4.85m wide x 2.39m high freestanding LED lightbox
  • Printed 175gsm backlit SEG fabric with black back panel
  • Pre-fitted LEDs, push-fit frame, no tools needed
  • Widen with extensions or build L, T and U shapes
  • Wheeled bag with foam inserts included
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£2,645.94 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A large freestanding LED lightbox wall, 4.85m wide and 2.39m high, with your design printed on backlit fabric and lit evenly from inside. Use it as a bright backwall on an exhibition stand, a feature wall in a shop or a showroom, or a lit display in a foyer.

Tech specs

  • Assembled size: 4850mm (W) x 2389mm (H) x 590mm (D)
  • Weight: 45.1kg
  • Printed sides: Single sided
  • Frame: 120mm deep aluminium profile, white powder coated, internal reinforcement tubes
  • Lighting: Pre-fitted horizontal LEDs, 6500K
  • Light output: 65,436 lumens, 437W
  • Power: Four transformers, 100 to 240V, mains plug
  • Feet: Six feet, fixed with thumbscrews
  • Graphic: 175gsm backlit polyester fabric, dye-sublimation, silicone edge graphic (SEG)
  • Reverse: Black back panel
  • Carry case: Black wheeled bag with foam inserts, carry handle and shoulder strap
  • Optional extras: Extensions, corner and T connectors, half and blind feet, A4 literature holder, sold separately
  • Use: Indoor

Your backlit graphic

Your design is printed by dye-sublimation on 175gsm backlit fabric, made for lightboxes so the light spreads through it evenly and the colours stay rich. A silicone edge pushes into the channel round the frame for a smooth, tight face. This version is printed on the front, with a black back panel on the reverse to stop light escaping and make the front brighter. The frame takes a graphic on both faces, so ask us if you want both sides printed.

Quick to put up

The white aluminium frame comes in numbered sections with the horizontal LEDs already fitted, so the parts push together without tools. The feet push into place and are held with thumbscrews. Power runs from the frame to a transformer and then to a standard mains plug, with the cables kept out of sight.

Grow it or change its shape

Add 850mm or 1m extension panels between frame sections to make the wall wider, up to 7.85m in total. With corner and T connectors you can also build L, T and U layouts that show your graphics from more than one side. Extensions, connectors, half and blind feet and an A4 literature holder are sold separately. Wider walls can need extra transformers, so tell us your plan and we will check it for you.

Packs into a wheeled bag

Everything packs into a black wheeled bag with foam inserts, a carry handle and a shoulder strap, so it is easy to move between venues and store between events.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium
Assembly Tool-free

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Backlit Polyester + Stretch Polyester
Print Method Dye-sublimation

Use & Portability

Use & Portability
Indoor / Outdoor Indoor
Carry Case Wheeled case

Power & Lighting

Power & Lighting
Lighting Pre-fitted horizontal LED, 6500K

Other Specifications

Other Specifications
LED Backlit Yes
Free Standing Yes
Width (mm) 4850
Height (mm) 2389
Depth (mm) 590
Frame 120mm aluminium, white
Graphic Fabric 175gsm backlit polyester SEG
Light Output 65,436 lumens

Guarantee

Guarantee
Hardware 1 year

Graphic

Graphic
Material Backlit polyester fabric
Print Method Dye sublimation
Finish Spreads the light evenly with no hot spots, so colours look bright and full when the lights are on.
Care Machine wash at 30°C with a mild detergent.

Frame & Hardware

Frame & Hardware
Frame 120mm aluminium, white

Reuse and recycling

  • The aluminium frame is modular, so it can be rebuilt in a different layout and dressed with new graphics for your next event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.
  • Ask us about printing your graphic on recycled fabric.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Instructions and technical sheets

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area.

Read our full artwork guidelines

FAQs

Can I make it wider or change its shape?

Yes. Add 850mm or 1m extension panels between frame sections to make it wider, up to 7.85m in total, or use corner and T connectors to build L, T and U layouts. These extras are sold separately.

How bright is it and what power does it need?

It gives 65,436 lumens from 437W. It runs from four transformers on 100 to 240V with a mains plug.

Do I need tools to put it up?

No. The frame comes in numbered sections with the LEDs already fitted, so the parts push together without tools. The feet push into place and are held with thumbscrews.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.
