Illuminova Wall Mounted SEG Lightbox with example artwork
Illuminova Wall Mounted SEG Lightbox in use at an event
Illuminova Wall Mounted SEG Lightbox line drawing

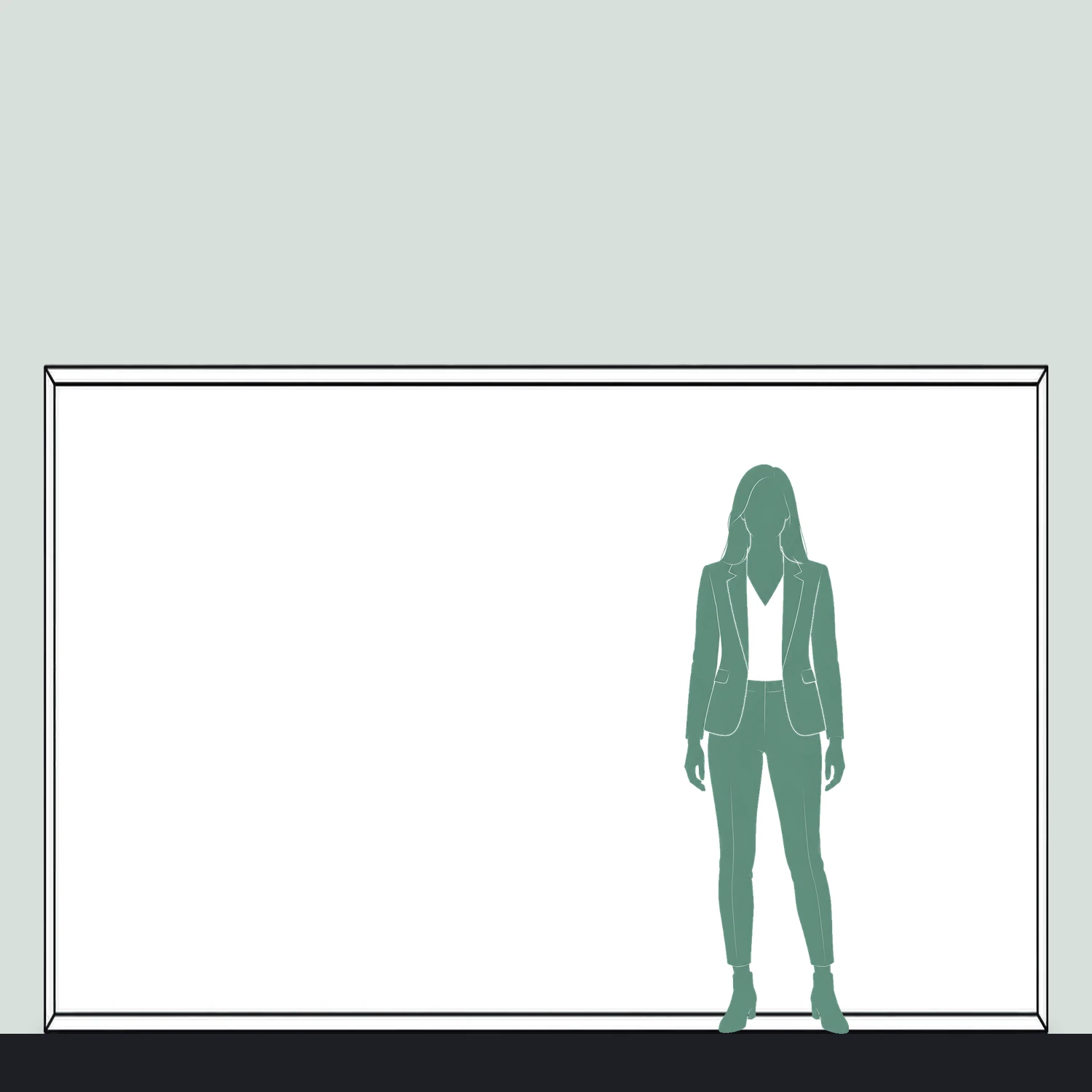

3m x 2m Illuminova Wall Mounted SEG Lightbox size compared with a person
LED strip with lens optics inside the lightbox frame
Lightbox aluminium frame corner profile

3m x 2m Illuminova Wall Mounted SEG Lightbox

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£1,496.34 ex VATinc VAT

Free Instant Mockup
  • 3m x 2m wall-mounted LED lightbox
  • Slim 75mm aluminium profile
  • Edge-lit LEDs, drivers hidden in the frame
  • Printed backlit SEG fabric graphic
  • Graphic changes without taking the frame down
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£1,496.34 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A 3m by 2m lightbox that fixes flat to a wall and sits just 75mm deep. It turns a plain wall in a shop, reception, showroom or bar into a bright branded feature, and the graphic can be changed while the frame stays on the wall.

Tech specs

  • Assembled size: 3000mm (W) x 2000mm (H) x 75mm (D)
  • Weight: 14.4kg
  • Printed sides: Single sided
  • Frame: 75mm aluminium profile, anodised silver
  • Lighting: Edge-lit LED strips, pre-fitted, drivers housed in the frame
  • Graphic: Backlit polyester fabric, silicone edge graphic (SEG)
  • Mounting: Wall fixed, holes every 500mm (screws and plugs not included)
  • Assembly: Allen key fixings, colour-coded sections
  • Use: Indoor

Lit evenly from the edges

The LED strips are fitted inside the aluminium profile at the factory and light the fabric from its edges, so your design glows evenly from corner to corner. The drivers are hidden inside the frame. If you build a run of lightboxes side by side, the lighting connects from one frame to the next, so the whole run needs only one power point.

Fixing it to the wall

The frame sections are colour-coded and join with an Allen key, with the locks and lights already in place. You then screw the frame to the wall through holes drilled every 500mm. Screws and wall plugs are not included, as the right fixings depend on your wall, so pick ones to suit plasterboard, brick or timber. On an uneven wall we suggest a blockout liner behind the graphic to stop light spilling round the edges.

Changing the graphic

Your design is printed on backlit fabric with a silicone strip sewn round its edge. Press the corners into the channel first, then the middle of each side, then work outwards to the corners. To update it, pull the old graphic out and press the new one in. The frame never has to come off the wall.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Backlit Polyester + Stretch Polyester

Use & Portability

Use & Portability
Indoor / Outdoor Indoor
Mounting Wall mounted

Power & Lighting

Power & Lighting
Lighting Edge-lit LED

Other Specifications

Other Specifications
LED Backlit Yes
Width (mm) 3000
Height (mm) 2000
Depth (mm) 75
Frame 75mm aluminium profile
Graphic Fabric Backlit polyester SEG

Guarantee

Guarantee
Hardware 1 year

Graphic

Graphic
Material Backlit polyester fabric, 175gsm
Print Method Dye sublimation
Finish Spreads the light evenly with no hot spots, so colours look bright and full when the lights are on.
Blockout Liner An unprinted liner behind the graphic that stops light glowing through the back of a single-sided lightbox.
Care Machine wash at 30°C with a mild detergent.

Frame & Hardware

Frame & Hardware
Frame 75mm aluminium profile

Reuse and recycling

  • The aluminium frame is made to be put up and taken down event after event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.
  • The blockout liner stays in the lightbox from one campaign to the next; only the printed graphic changes.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Instructions and technical sheets

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area. The unprinted blockout liner behind your graphic needs no artwork.

Read our full artwork guidelines

FAQs

How is it fixed to the wall?

It screws to the wall through holes every 500mm. Screws and wall plugs are not included, as the right fixings depend on your wall.

How big is it?

It measures 3000mm wide, 2000mm high and 75mm deep, and weighs 14.4kg.

Can I change the graphic without taking it down?

Yes. Pull the old graphic out and press the new one in. The frame never has to come off the wall.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.
