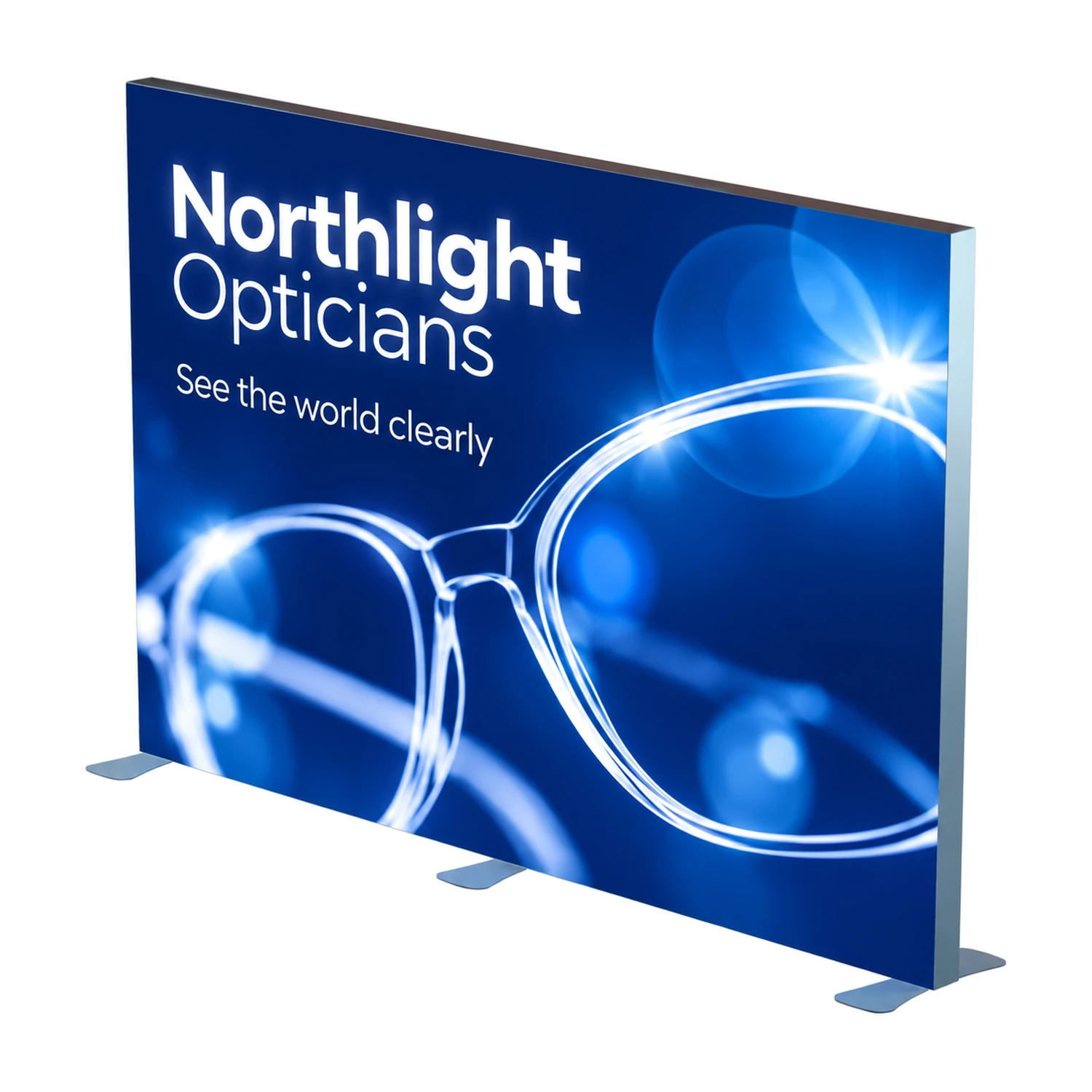

3m x 2m Illuminova Freestanding LED Lightbox Wall with example artwork

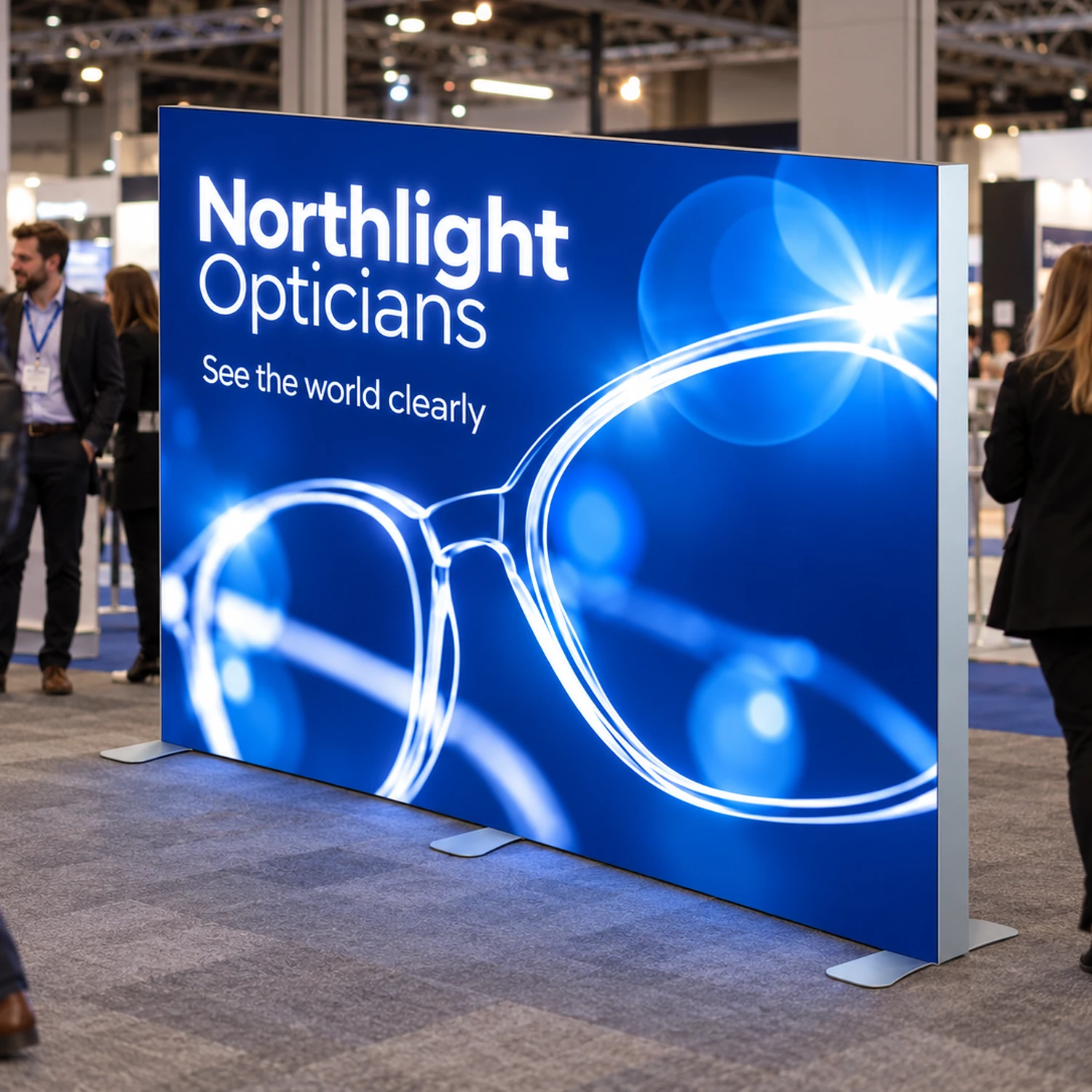

3m x 2m Illuminova Freestanding LED Lightbox Wall in use at an event

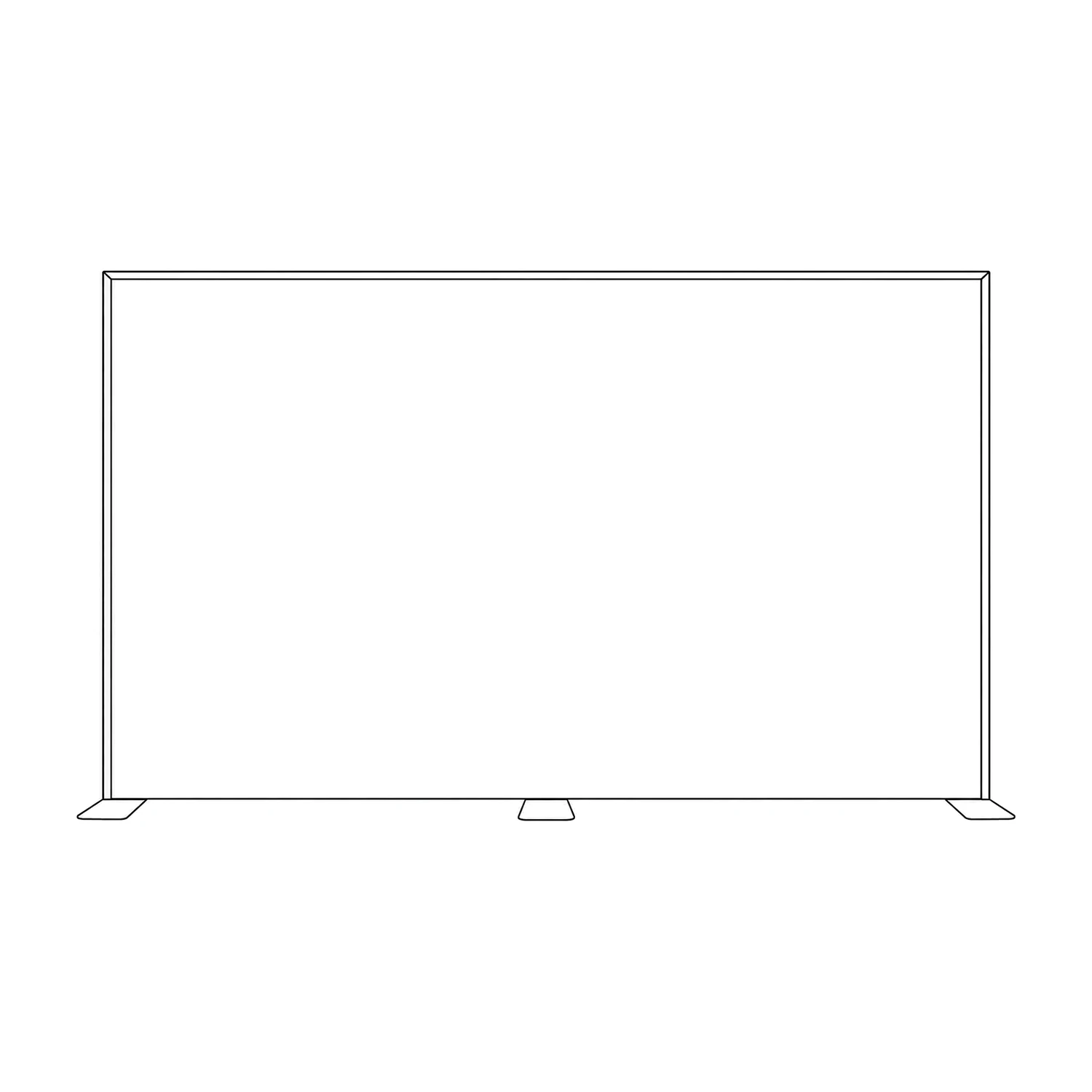

3m x 2m Illuminova Freestanding LED Lightbox Wall line drawing

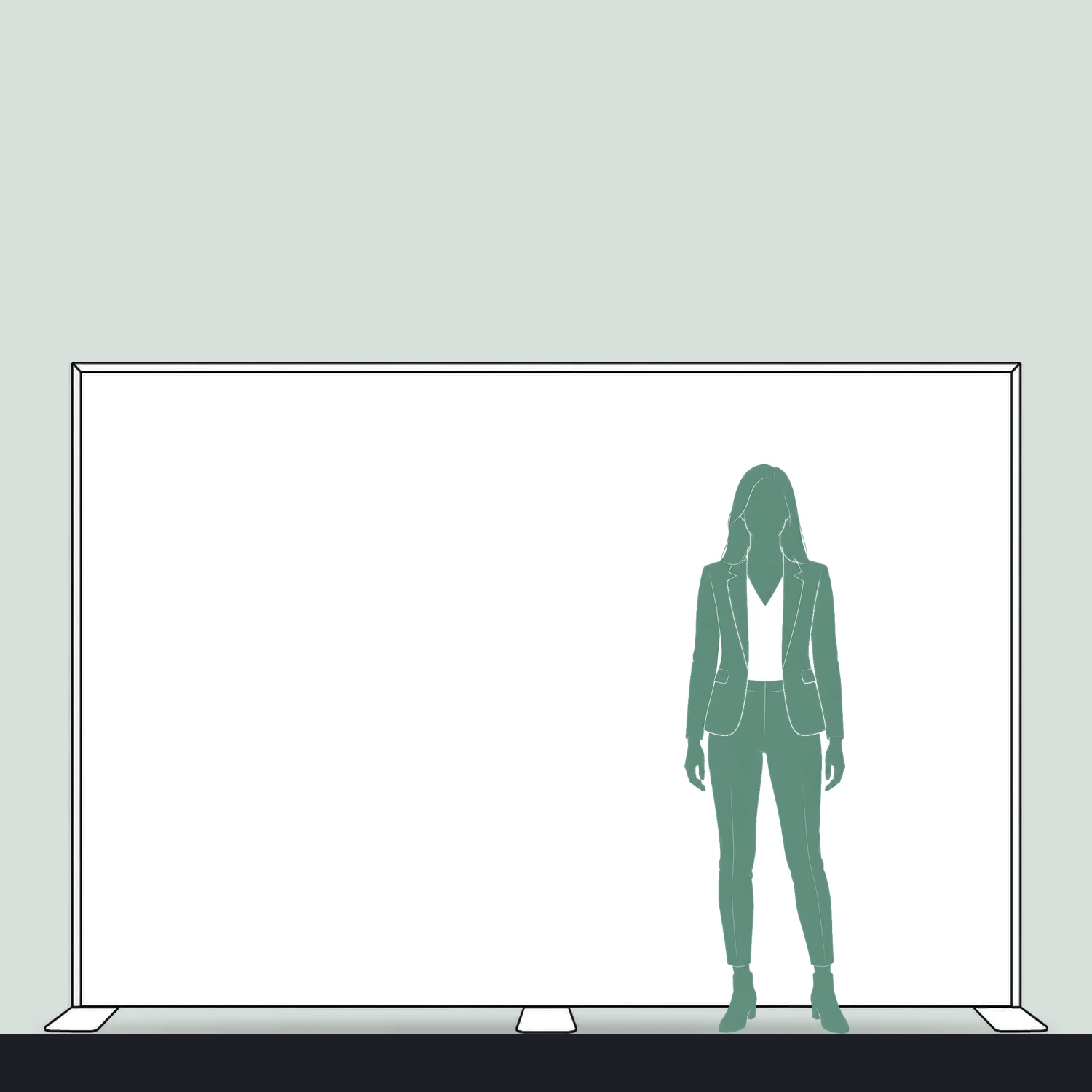

3m x 2m Illuminova Freestanding LED Lightbox Wall size compared with a person

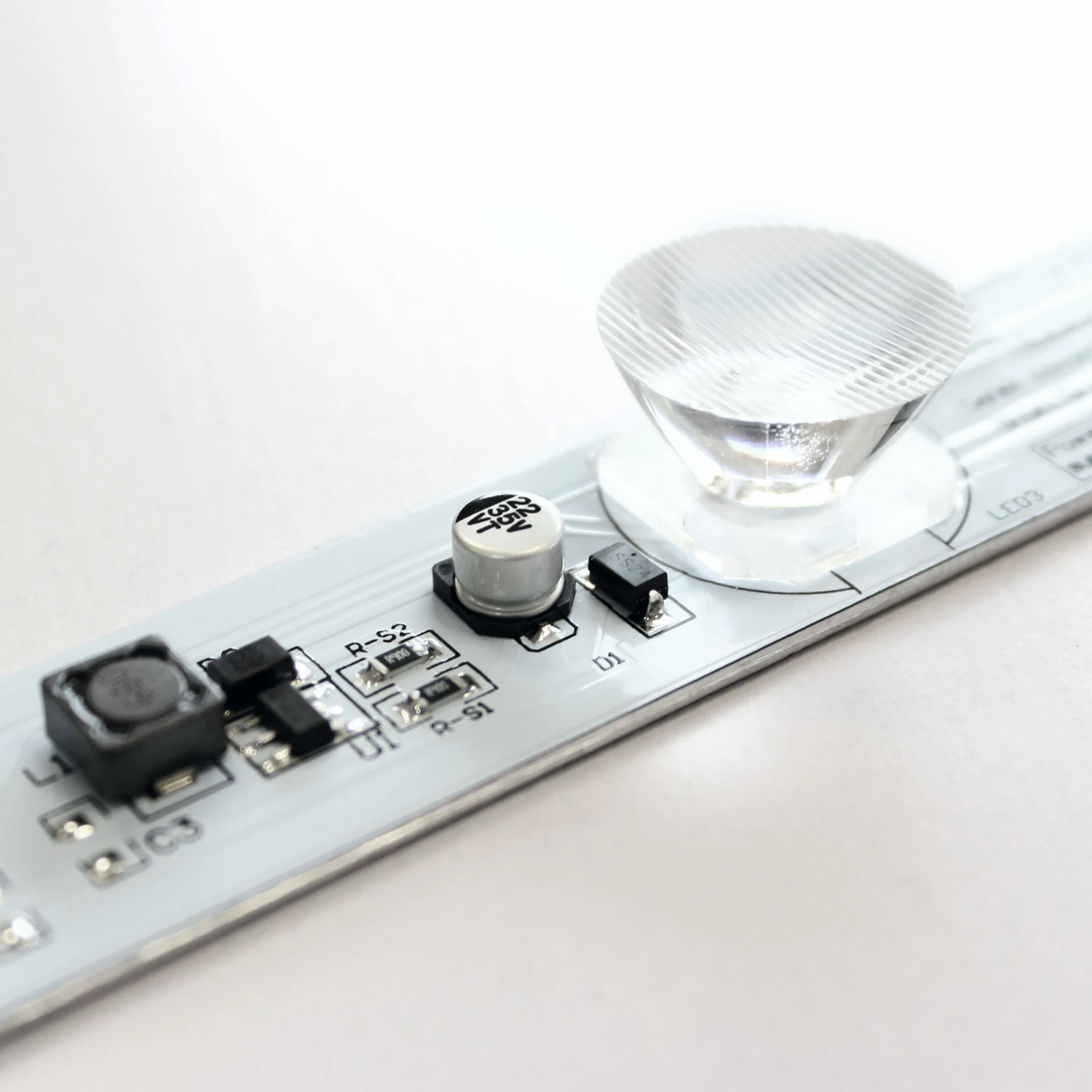

LED strip with lens optics inside the lightbox frame

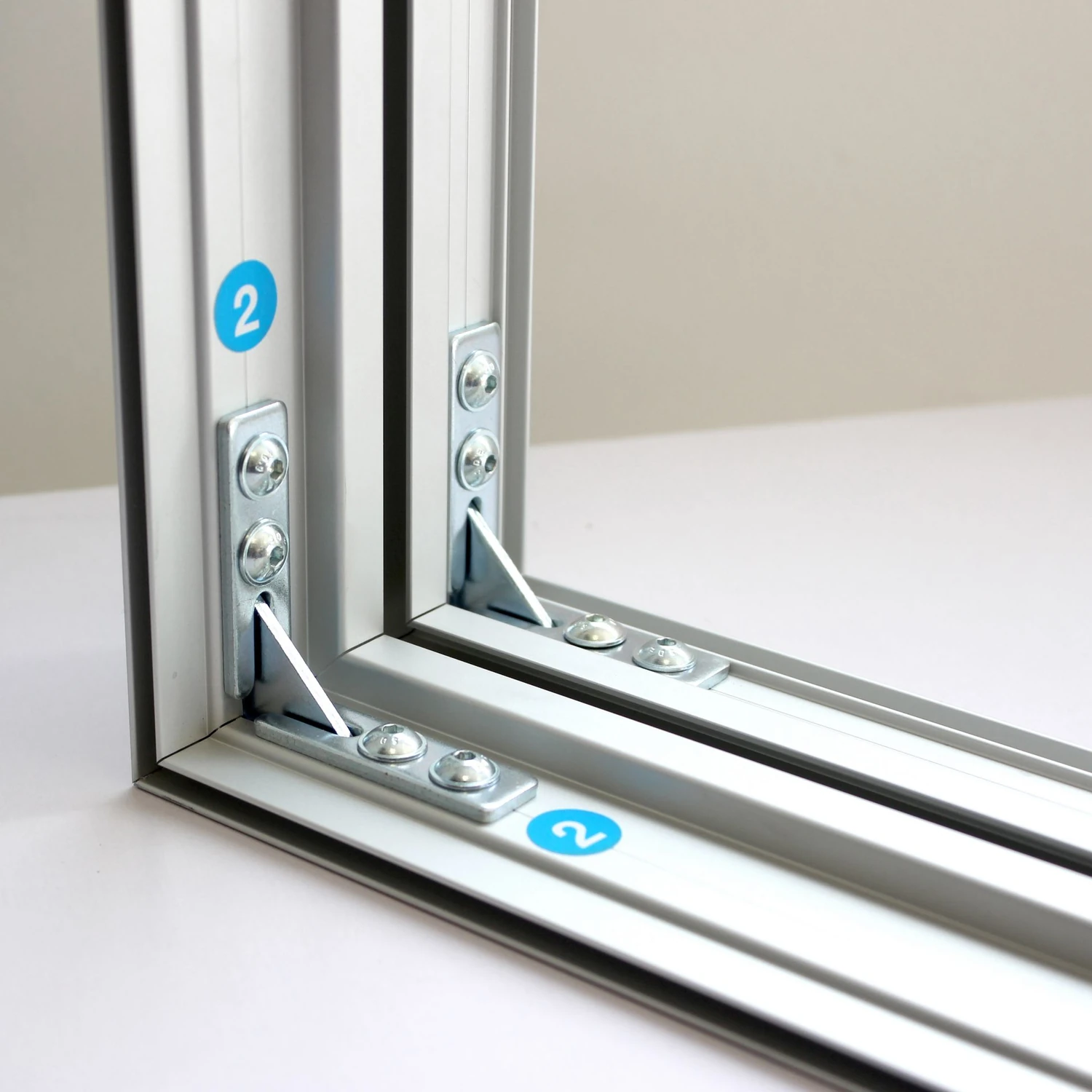

Lightbox frame corner bracket with assembly labels

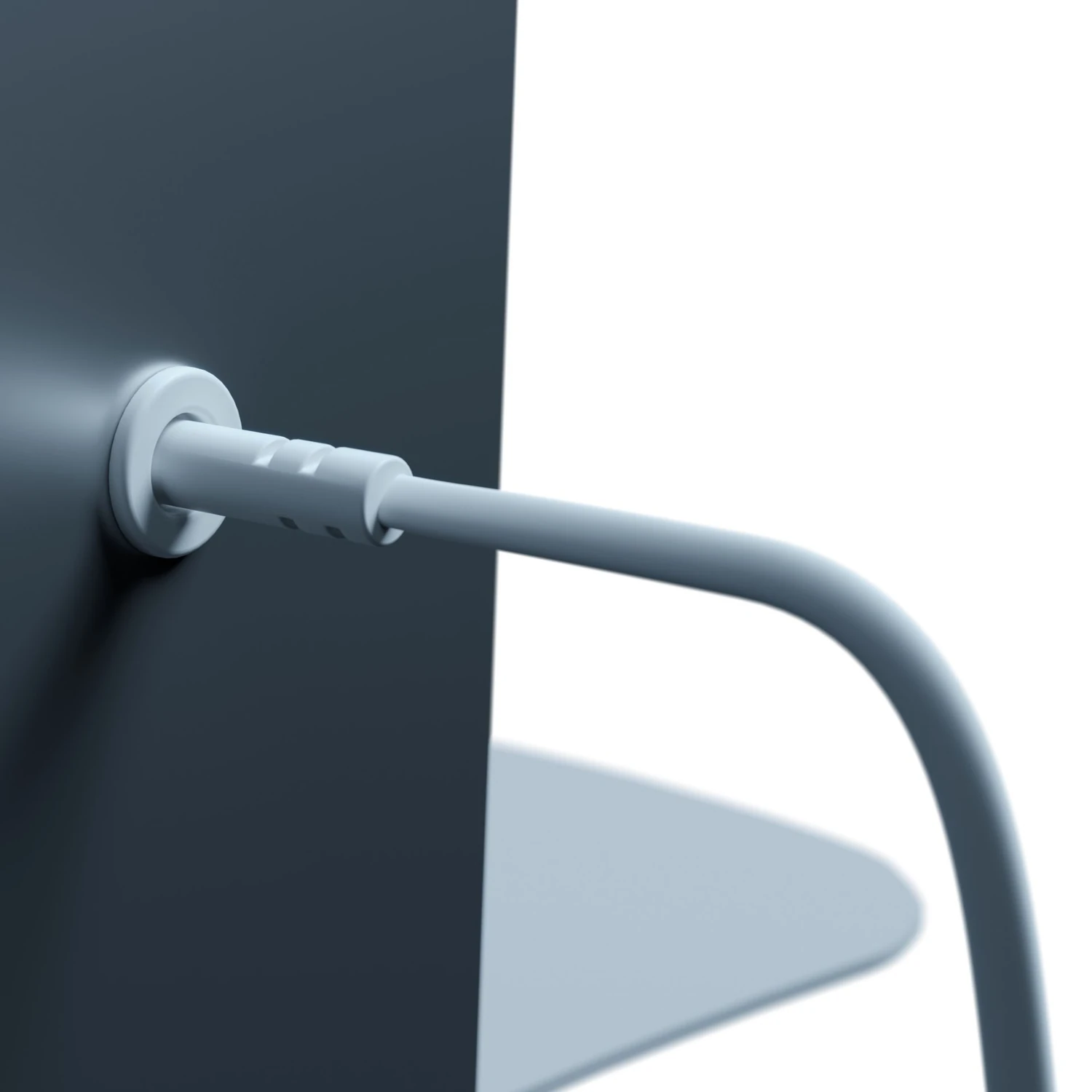

Power cable entry and foot on the lightbox frame

3m x 2m Illuminova Freestanding LED Lightbox Wall

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£2,049.95 ex VATinc VAT

Free Instant Mockup
  • 3m wide x 2m high freestanding LED lightbox wall
  • Edge-lit LEDs for even, bright illumination
  • Printed backlit SEG fabric graphic with blockout back
  • 100mm aluminium profile on three steel feet
  • Graphic swaps out quickly for new campaigns
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£2,049.95 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A 3m wide by 2m high freestanding lightbox wall that lights your graphic evenly from the edges. It stands on its own feet, so you can place it anywhere on your stand, in a reception or on a shop floor, and use it as a bright backdrop or a dividing wall that people notice from across the room.

Tech specs

  • Assembled size: 3000mm (W) x 2007mm (H) x 550mm (D)
  • Weight: 27.9kg
  • Printed sides: Single sided
  • Frame: 100mm aluminium profile, anodised silver
  • Lighting: Edge-lit LED strips, pre-fitted, drivers housed in the frame
  • Graphic: Backlit polyester fabric, silicone edge graphic (SEG)
  • Reverse: Black blockout liner
  • Assembly: Allen key fixings, numbered sections
  • Feet: Three steel feet
  • Use: Indoor

Edge-lit and evenly bright

LED strips sit inside the 100mm aluminium profile and shine across the back of the fabric, so the whole graphic glows without hot spots. The drivers are tucked away inside the frame, which keeps the cabling tidy, and the low-energy LEDs run cool enough to leave on all day.

Printed on the front

This version carries your printed graphic on the front face. A black blockout liner closes the back of the frame, so the light is pushed forward through your design and nothing glows out from behind. The frame will take a printed graphic on both faces too, so if it will stand in an open space with visitors passing on both sides, ask us for a double-sided version.

How it goes together

The frame arrives in numbered sections with the lighting already fitted. You join the corners and lengths with an Allen key, lock in the reinforcing bars, plug the LED strips and drivers together by their markings and bolt on the three steel feet. Your graphic has a silicone strip sewn round the edge that presses into a channel in the frame, so it sits tight and flat and can be swapped for a new design whenever your message changes.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Backlit Polyester + Stretch Polyester

Use & Portability

Use & Portability
Indoor / Outdoor Indoor

Power & Lighting

Power & Lighting
Lighting Edge-lit LED

Other Specifications

Other Specifications
LED Backlit Yes
Free Standing Yes
Width (mm) 3000
Height (mm) 2007
Depth (mm) 550
Frame 100mm aluminium profile
Graphic Fabric Backlit polyester SEG

Guarantee

Guarantee
Hardware 1 year

Graphic

Graphic
Material Backlit polyester fabric, 175gsm
Print Method Dye sublimation
Finish Spreads the light evenly with no hot spots, so colours look bright and full when the lights are on.
Blockout Liner An unprinted liner behind the graphic that stops light glowing through the back of a single-sided lightbox.
Care Machine wash at 30°C with a mild detergent.

Frame & Hardware

Frame & Hardware
Frame 100mm aluminium profile

Reuse and recycling

  • The aluminium frame is made to be put up and taken down event after event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.
  • The blockout liner stays in the lightbox from one campaign to the next; only the printed graphic changes.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Instructions and technical sheets

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area. The unprinted blockout liner behind your graphic needs no artwork.

Read our full artwork guidelines

FAQs

How big is it when it's set up?

It measures 3000mm wide, 2007mm high and 550mm deep, and weighs 27.9kg.

How is it lit?

Edge-lit LED strips come pre-fitted inside the frame, and the drivers are housed in the frame too, which keeps the cabling tidy.

Can I change the graphic later?

Yes. Your graphic has a silicone strip round the edge that presses into a channel in the frame, so it can be swapped for a new design whenever your message changes.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.
