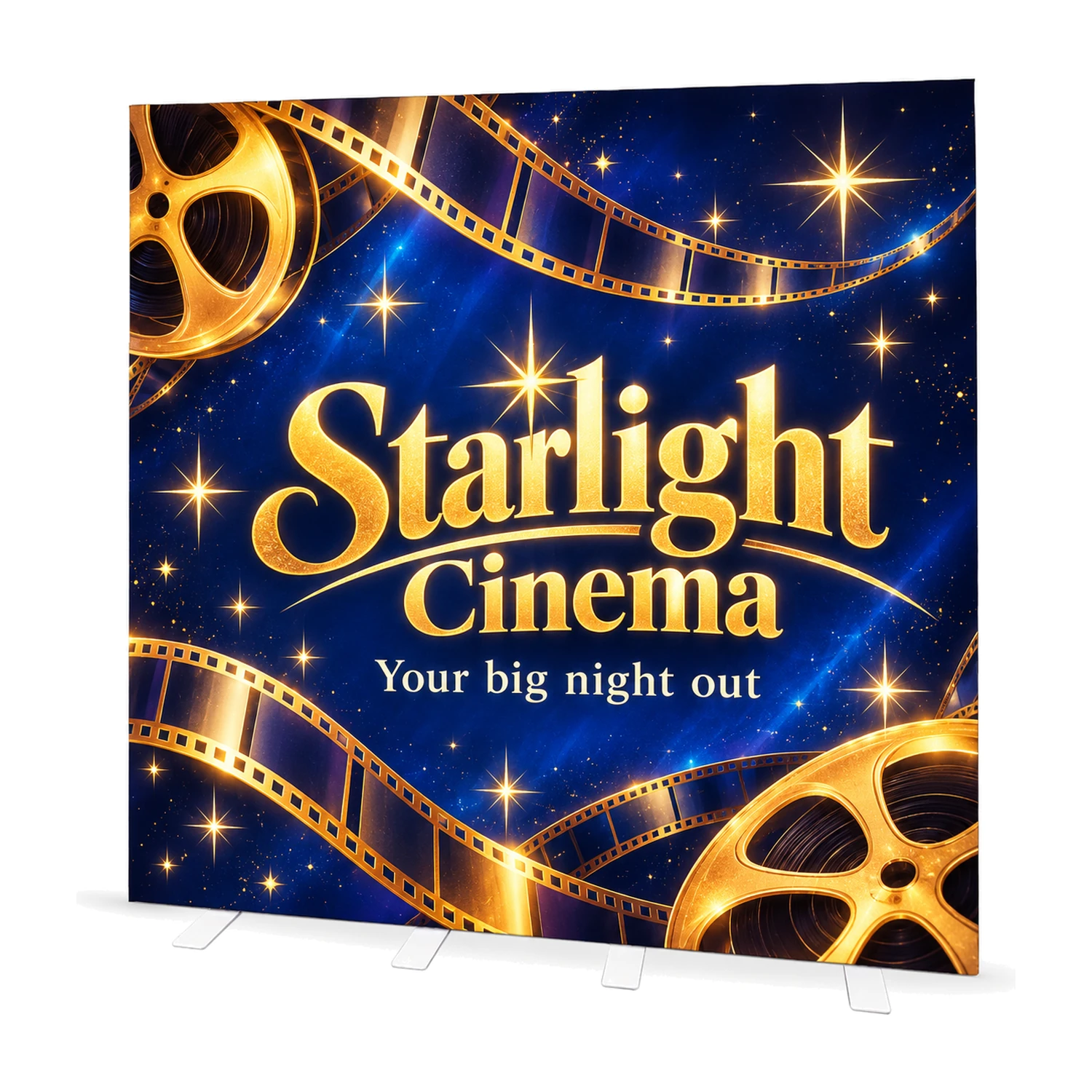

2m x 2m Illumigo Portable LED Lightbox Wall with example artwork

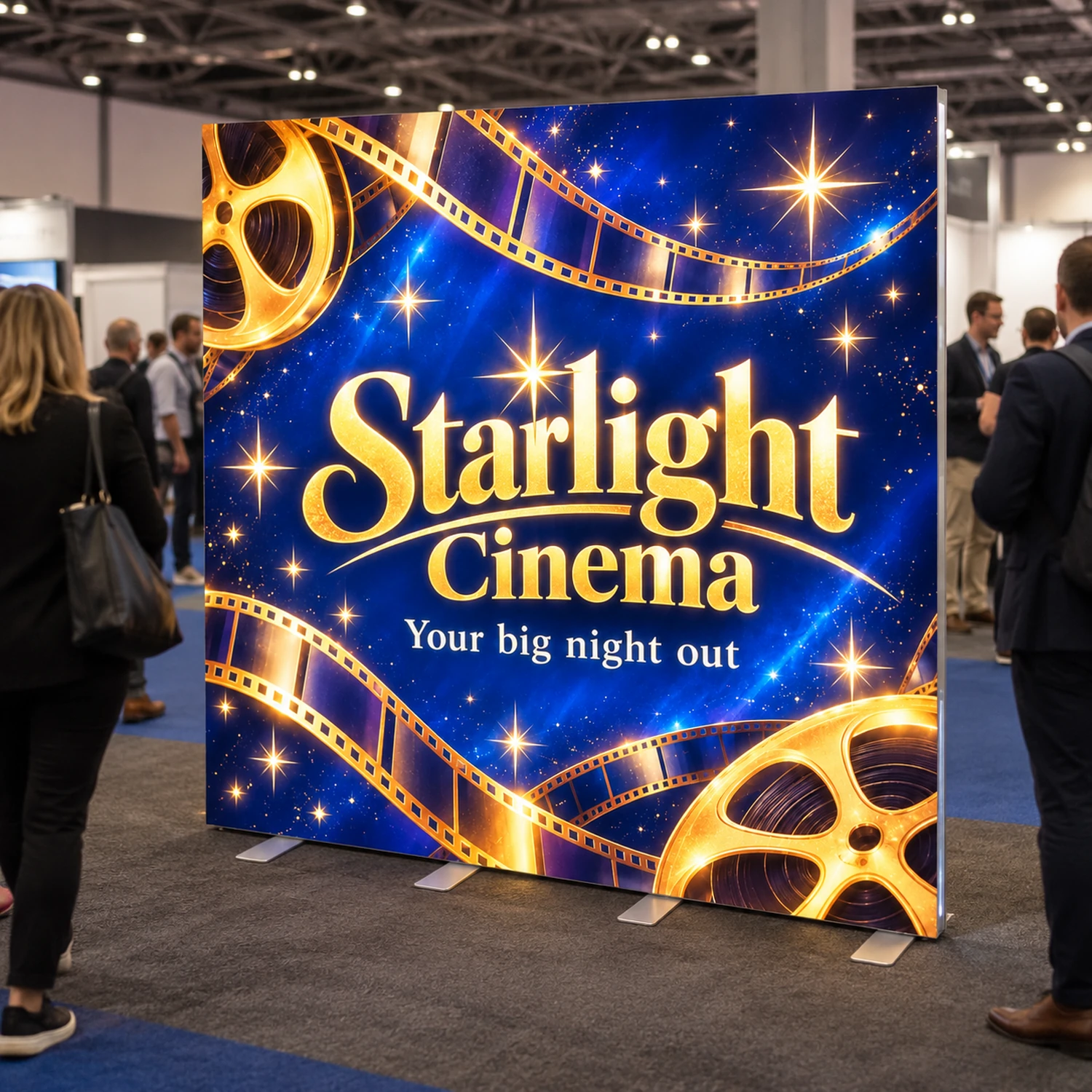

2m x 2m Illumigo Portable LED Lightbox Wall in use at an event

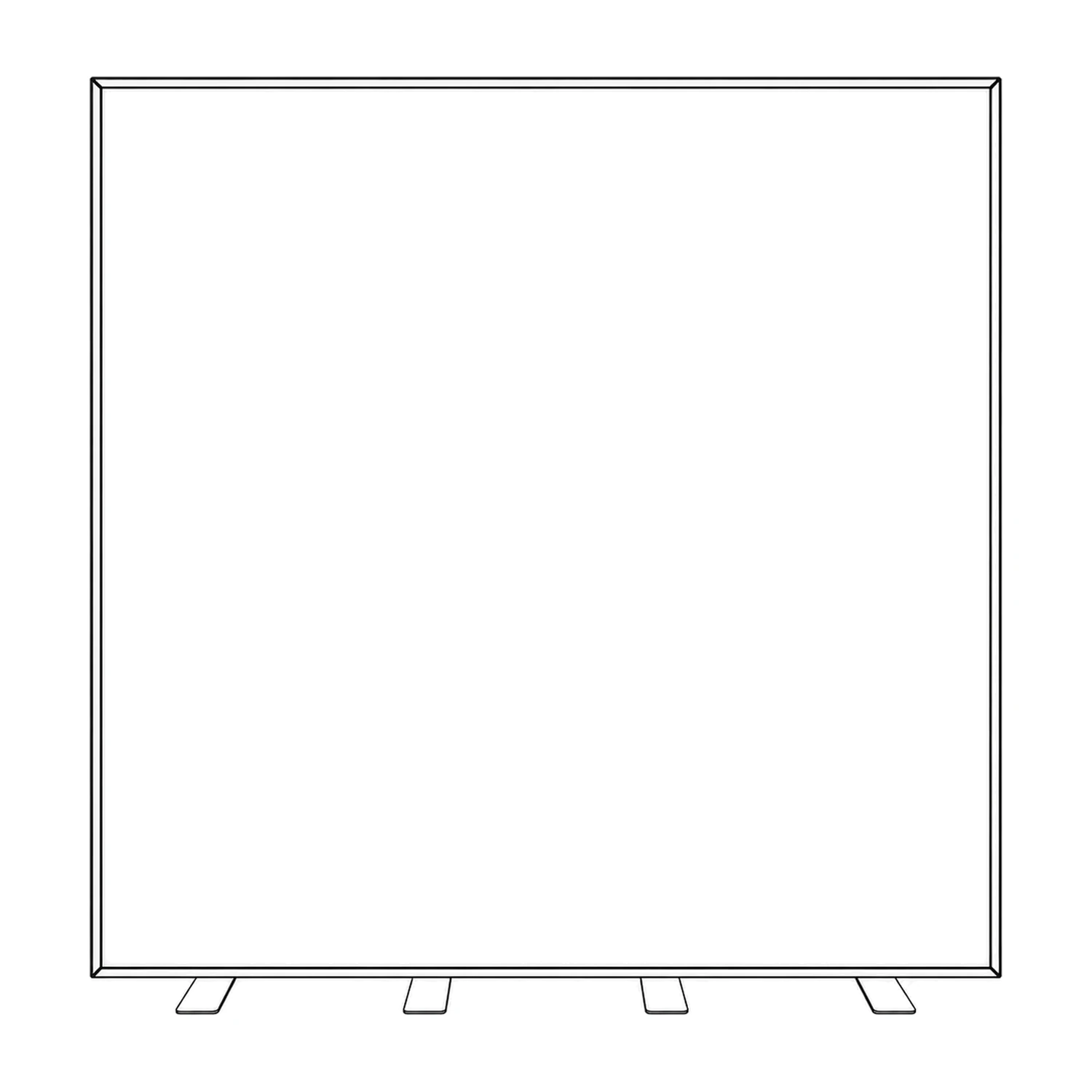

2m x 2m Illumigo Portable LED Lightbox Wall line drawing

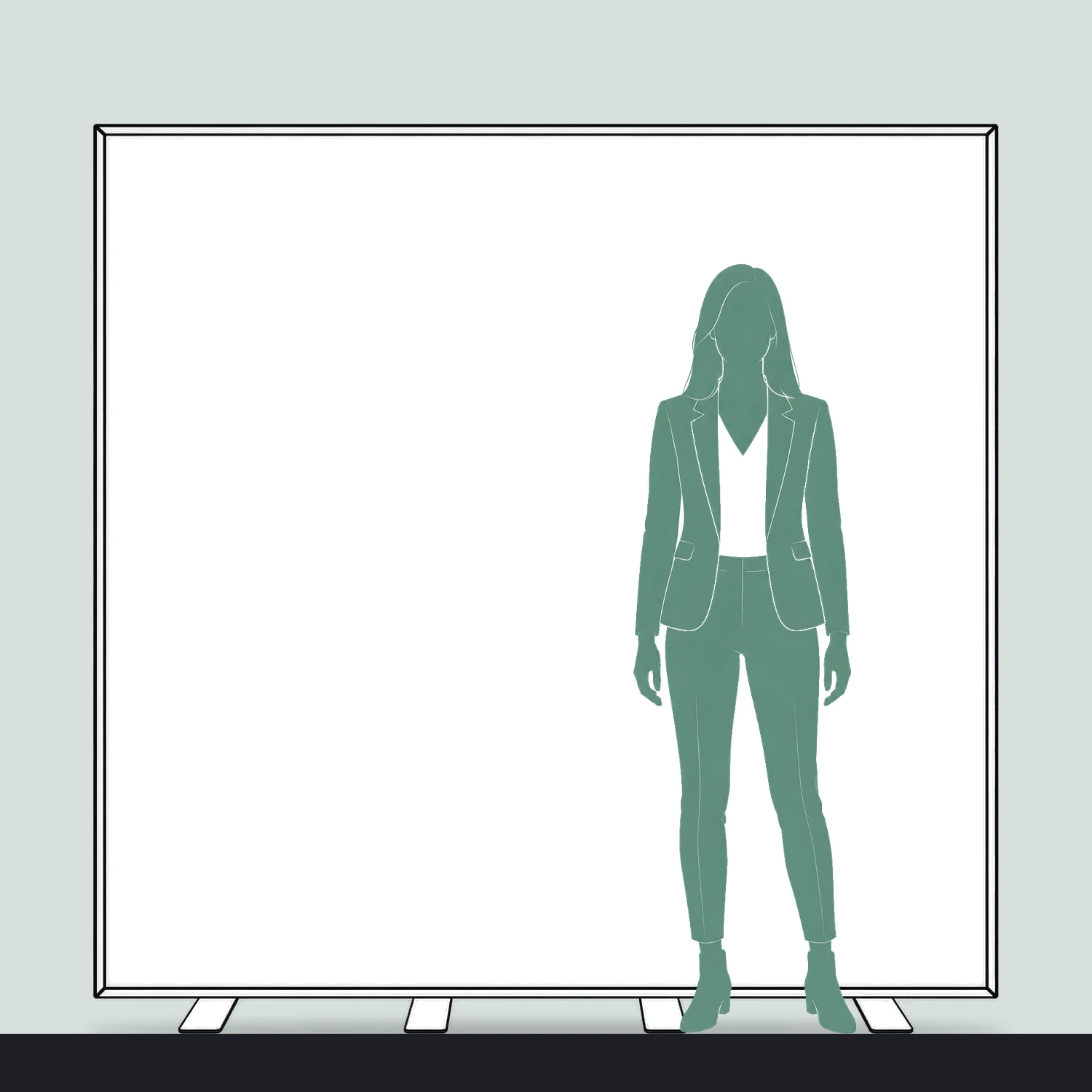

2m x 2m Illumigo Portable LED Lightbox Wall size compared with a person

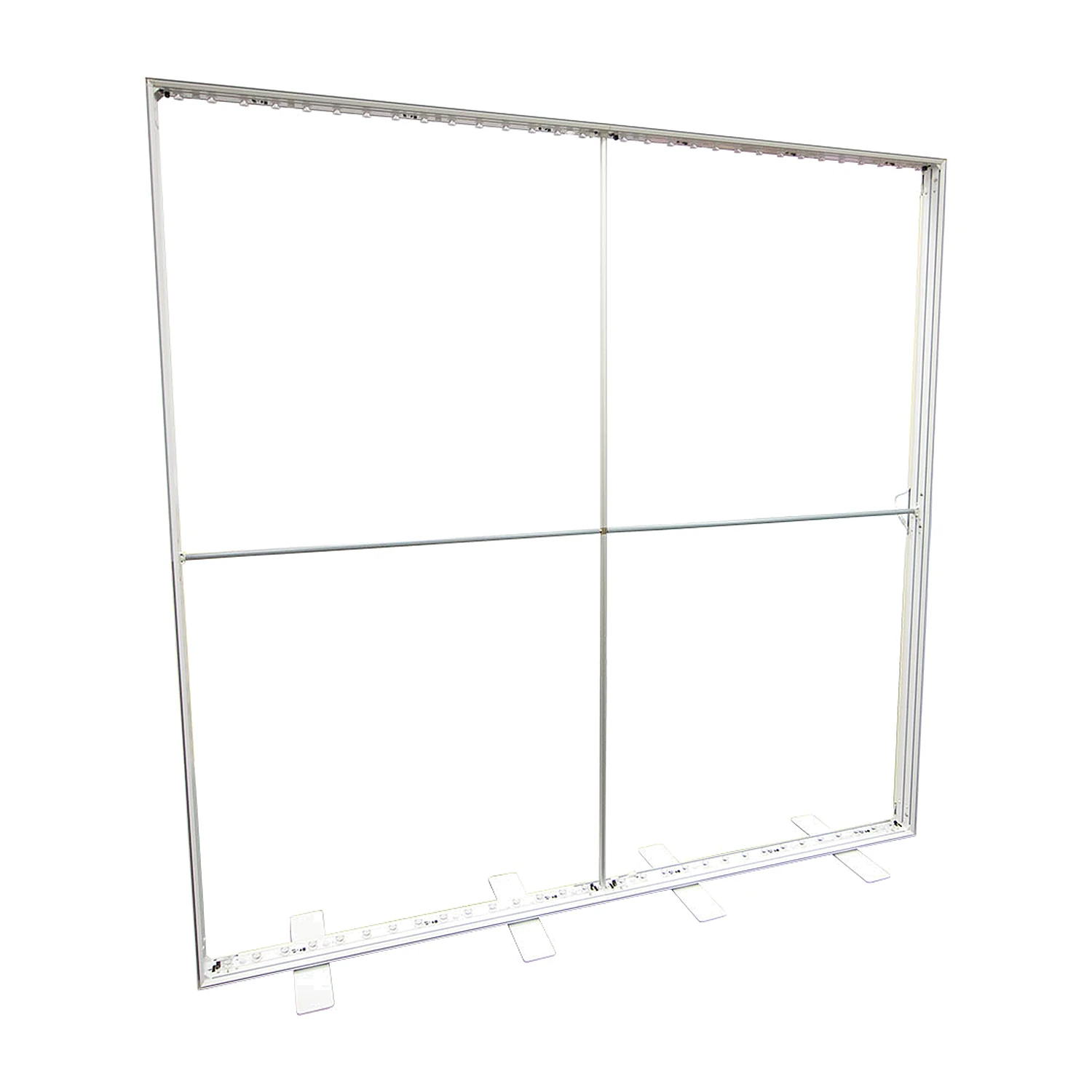

2m x 2m lightbox frame with LED edges and feet, no graphic

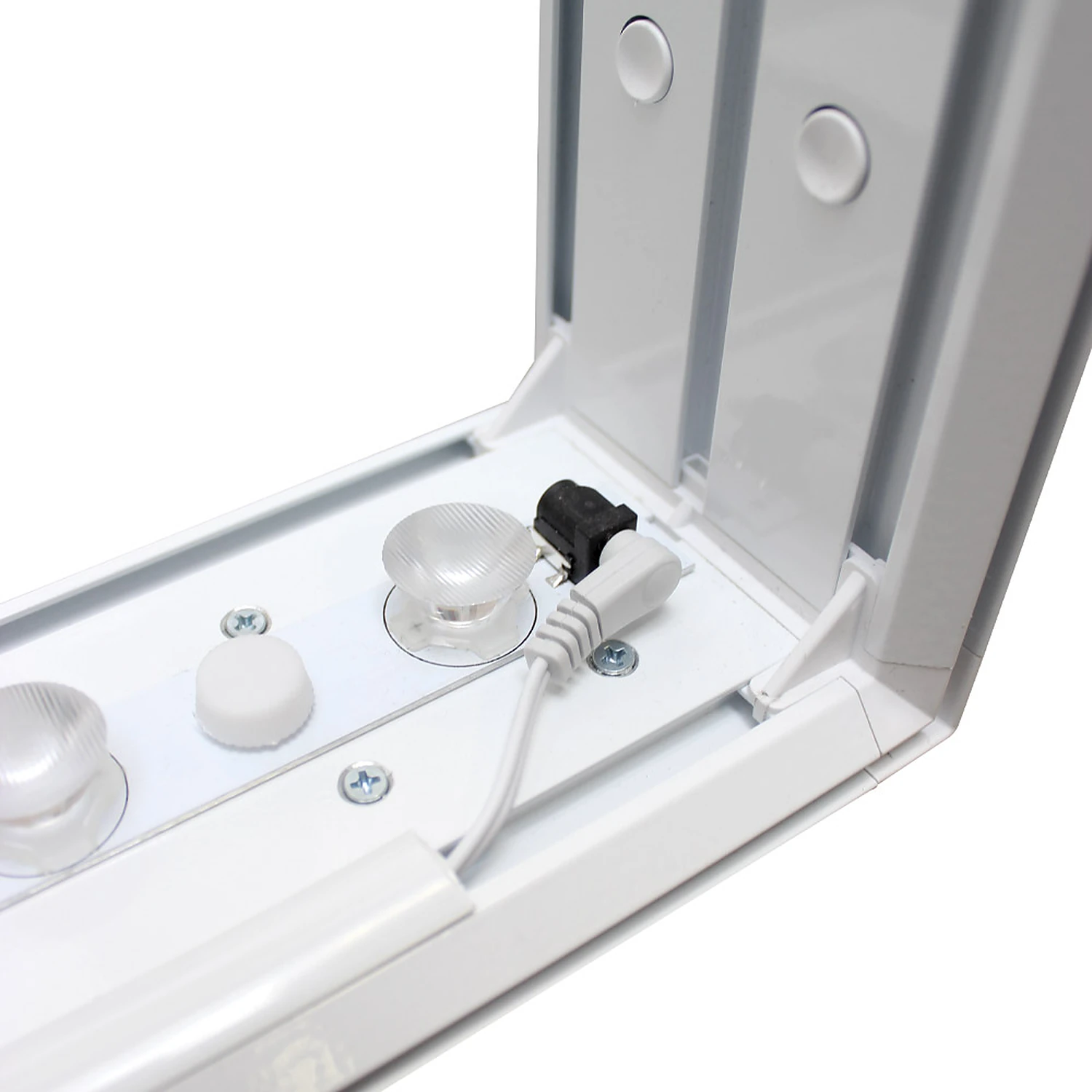

Lightbox inside corner with LED modules and power socket

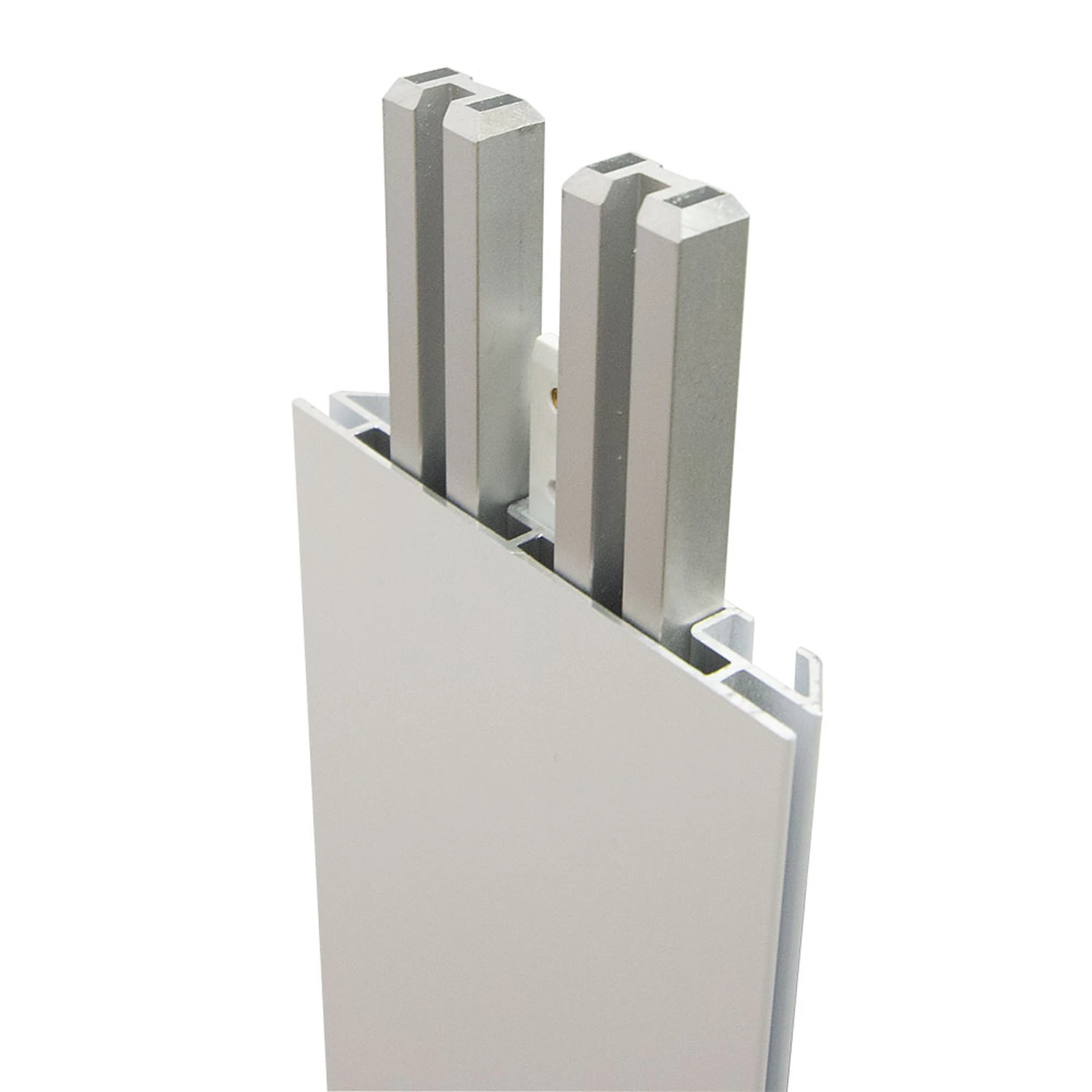

Lightbox profile end with joining spigots

2m x 2m Illumigo Portable LED Lightbox Wall

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£723.95 ex VATinc VAT

Free Instant Mockup
  • 2m x 2m portable LED lightbox wall
  • Tool-free build in under ten minutes
  • Printed 175gsm backlit SEG fabric graphic
  • White 100mm aluminium frame with twist-out feet
  • Protective box with carry handle
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£723.95 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A portable 2m by 2m LED lightbox wall in a white aluminium frame. It gives you a big, bright graphic for exhibition stands, showrooms, shop displays and events, and builds without tools in under ten minutes.

Tech specs

  • Assembled size: 2000mm (W) x 2010mm (H) x 400mm (D)
  • Weight: 13.7kg
  • Printed sides: Single sided
  • Frame: 100mm aluminium profile, white
  • Lighting: Integrated LEDs, power connects under the base
  • Graphic: 175gsm backlit polyester fabric, dye-sublimation, silicone edge graphic (SEG)
  • Reverse: Black back panel
  • Feet: Twist-out feet fixed to the frame
  • Case: Protective box with carry handle
  • Use: Indoor

Quick to put up

Twist out the feet, join the frame sections by their numbers and slot in the horizontal support bar. Press the graphic into the channel round the edge and plug the power cable in under the base panel. That is the whole build, and no tools are needed.

Your backlit graphic

Your design is printed by dye-sublimation on 175gsm backlit fabric, made for lightboxes so the light spreads evenly through it and the colours stay rich. It has a silicone edge that pushes into the channel round the frame. This version is printed on the front, with a black back panel on the reverse to stop light escaping and sharpen the front graphic. The frame takes a graphic on both faces, so ask us if you want it printed on both sides.

Transport and storage

The lightbox packs into a protective box with a carry handle, which keeps the parts together and safe between events. It suits brands that move the same display between sites or swap the graphic for each new promotion.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium
Assembly Tool-free

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Backlit Polyester + Stretch Polyester
Print Method Dye-sublimation

Use & Portability

Use & Portability
Indoor / Outdoor Indoor

Power & Lighting

Power & Lighting
Lighting Integrated LED

Other Specifications

Other Specifications
LED Backlit Yes
Free Standing Yes
Width (mm) 2000
Height (mm) 2010
Depth (mm) 400
Frame 100mm aluminium, white
Graphic Fabric 175gsm backlit polyester SEG

Guarantee

Guarantee
Hardware 1 year

Graphic

Graphic
Material Backlit polyester fabric, 175gsm
Print Method Dye sublimation
Finish Spreads the light evenly with no hot spots, so colours look bright and full when the lights are on.
Care Machine wash at 30°C with a mild detergent.

Frame & Hardware

Frame & Hardware
Frame 100mm aluminium, white

Reuse and recycling

  • The aluminium frame is made to be put up and taken down event after event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.
  • Ask us about printing your graphic on recycled fabric.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Instructions and technical sheets

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area.

Read our full artwork guidelines

FAQs

How long does it take to put up?

It builds without tools in under ten minutes.

How big is it and how heavy is it?

It measures 2000mm wide, 2010mm high and 400mm deep, and weighs 13.7kg. It packs into a protective box with a carry handle.

Is it printed on one side or both?

This version is printed on the front, with a black back panel on the reverse. The frame takes a graphic on both faces, so ask us if you want it printed on both sides.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.
