1m x 2m Illumigo Lite Mag Portable LED Lightbox, White Frame with example artwork

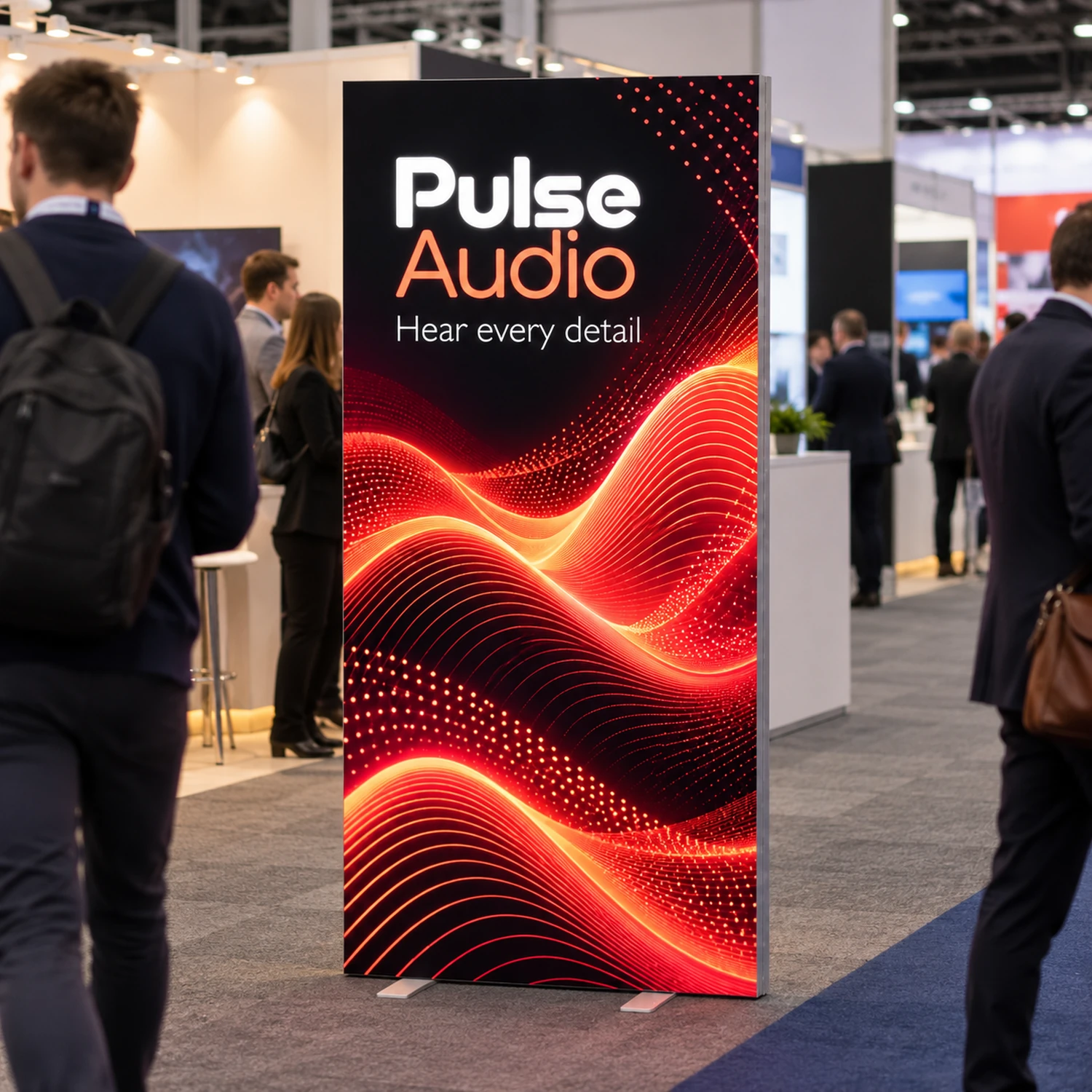

1m x 2m Illumigo Lite Mag Portable LED Lightbox, White Frame in use at an event

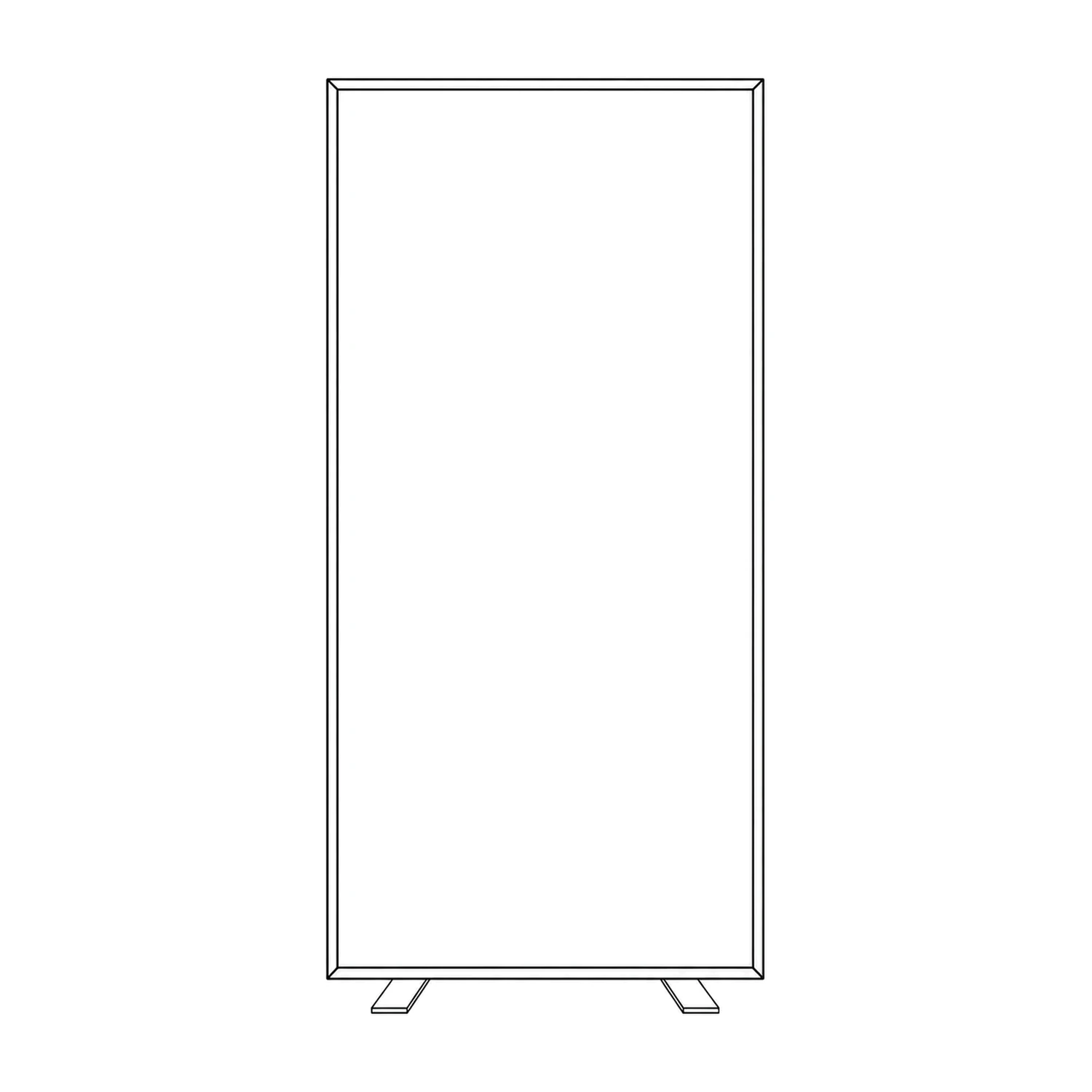

1m x 2m Illumigo Lite Mag Portable LED Lightbox, White Frame line drawing

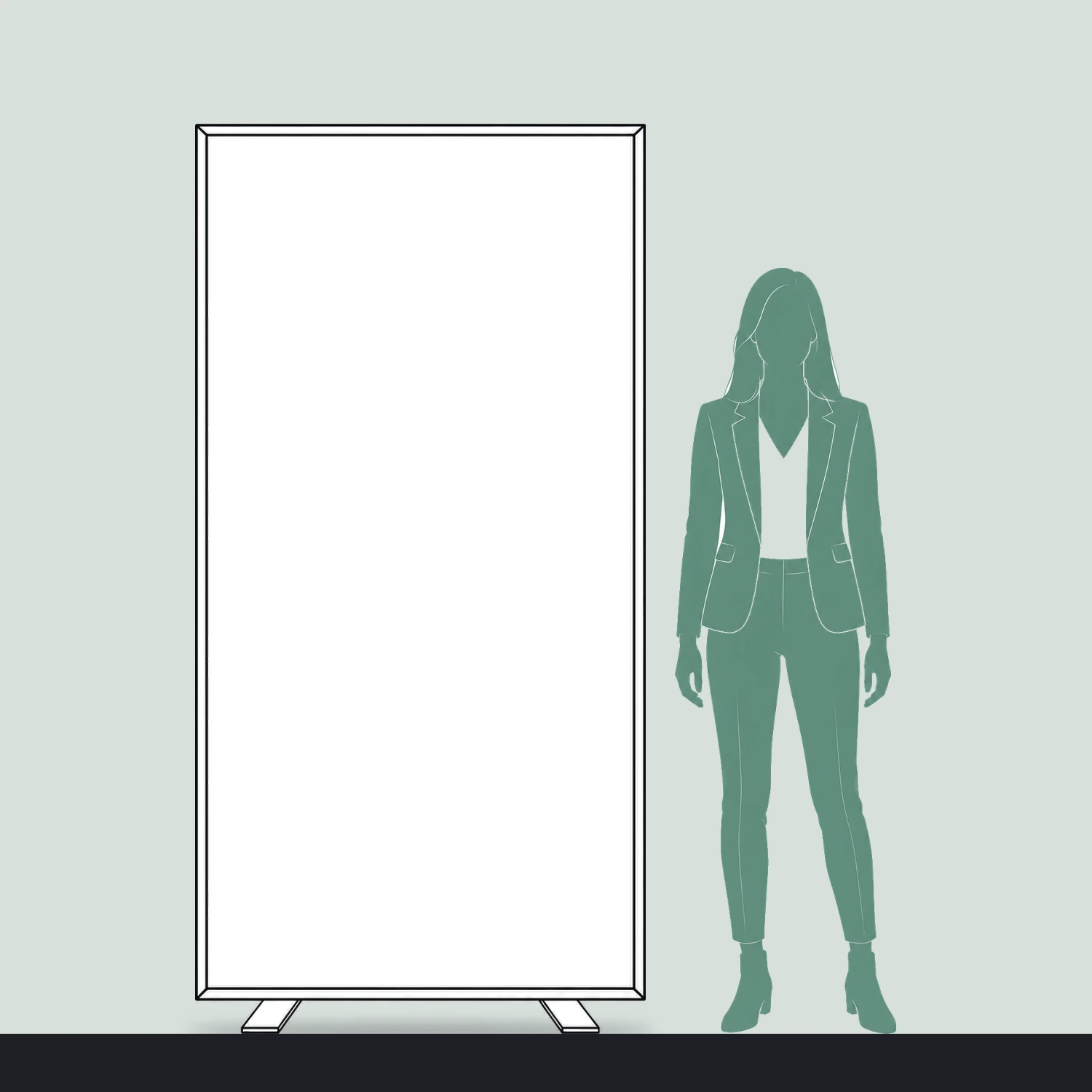

1m x 2m Illumigo Lite Mag Portable LED Lightbox, Black Frame size compared with a person

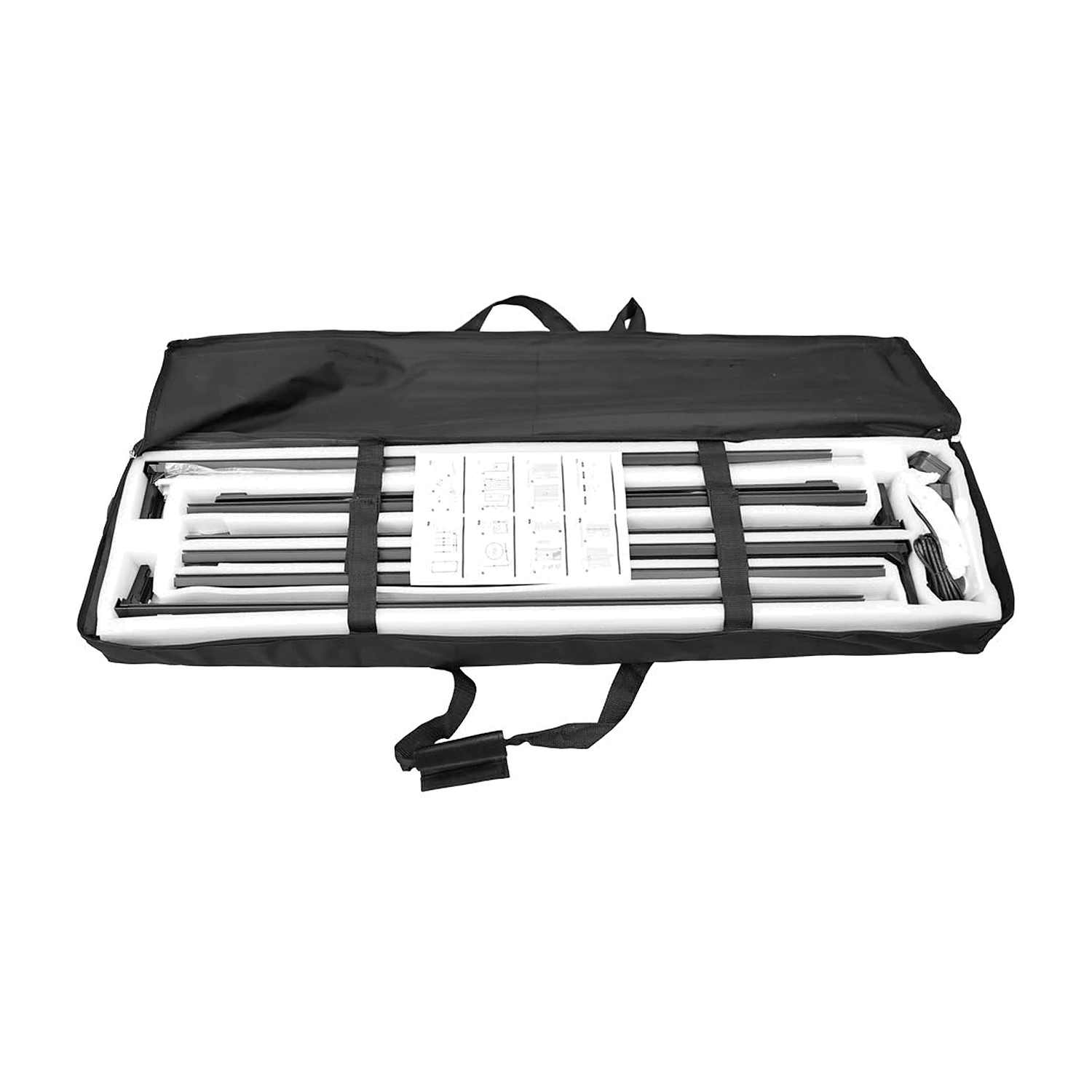

Wheeled carry bag opened with the black frame profiles in foam inserts

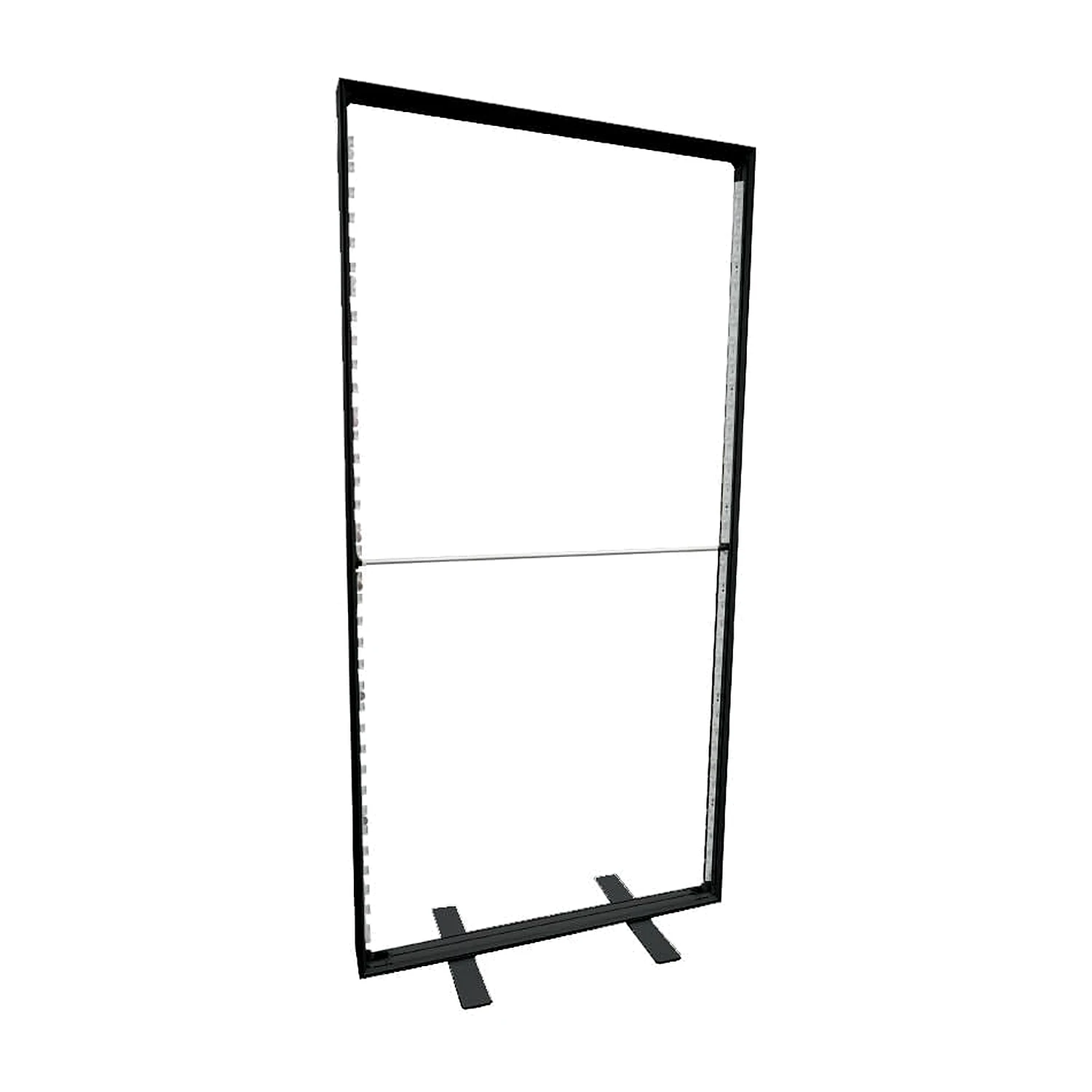

Black lightbox frame with crossbar and feet, shown without graphic

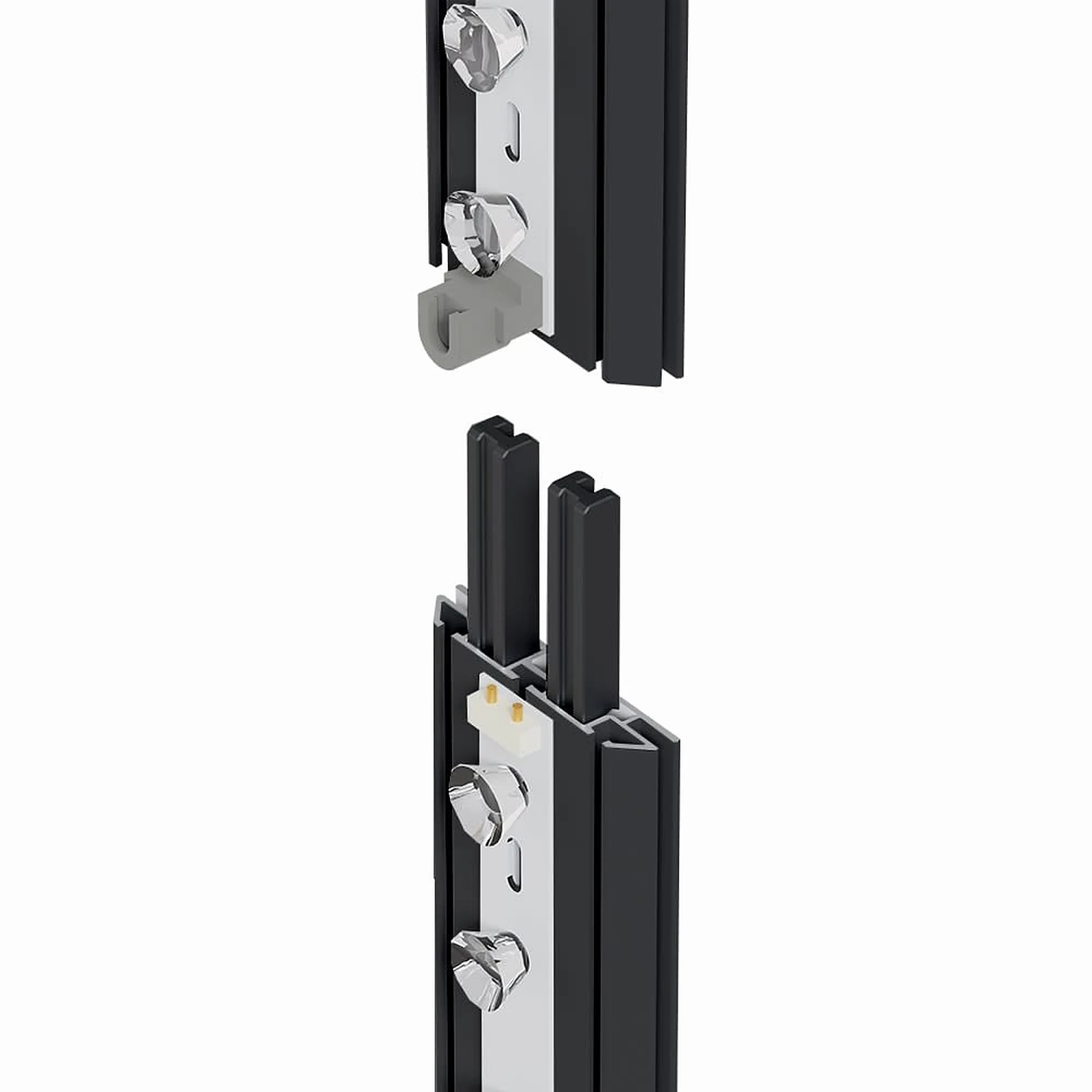

Black frame profile joint with connector and locking clip

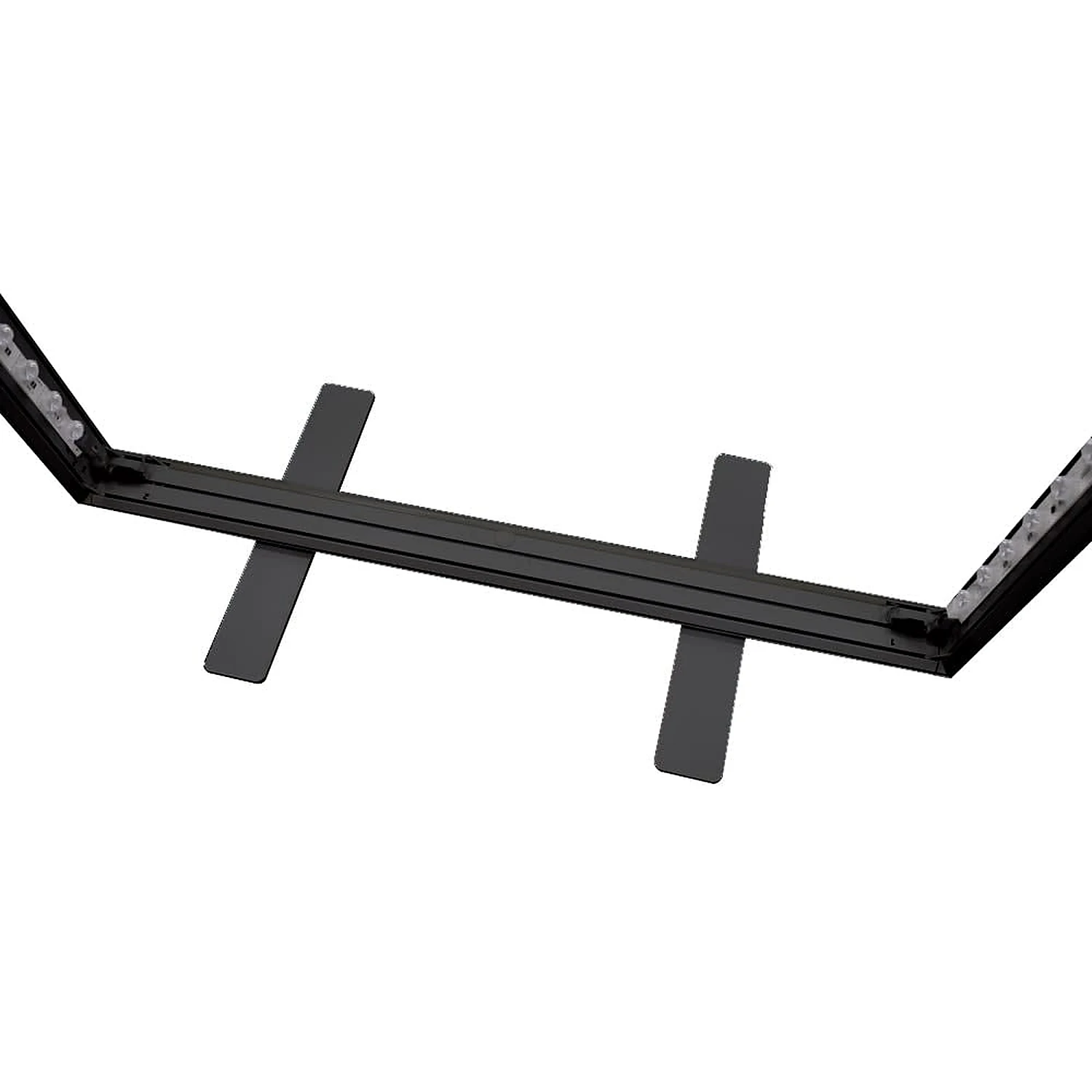

Bottom rail of the black frame with its two flat feet

1m x 2m Illumigo Lite Mag Portable LED Lightbox, Black Frame

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£352.95 ex VATinc VAT

Free Instant Mockup
  • 1m wide x 2.02m high portable LED lightbox
  • Magnetic edges join extra frames in seconds
  • Pre-fitted LED lighting, tool-free build
  • Printed 175gsm backlit SEG fabric graphic
  • Wheeled carry bag with foam inserts
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£352.95 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A slim portable LED lightbox, 1m wide and 2.02m high, in a white 80mm frame with magnets built into the edges. Use one on its own for a bright display, or snap several together to make a lit backwall, a corner or a product showcase at exhibitions, in shops and in hospitality spaces.

Tech specs

  • Assembled size: 1000mm (W) x 2020mm (H) x 400mm (D)
  • Weight: 8.6kg
  • Printed sides: Single sided
  • Frame: 80mm aluminium profile, white powder coated, magnetic edges
  • Lighting: Four vertical LED strips, 6350K, 1551 lumens
  • Power: 72.2W, 100-240V, EU plug with UK adapter
  • Graphic: 175gsm backlit polyester fabric, dye-sublimation, silicone edge graphic (SEG)
  • Reverse: Black blockout liner
  • Feet: Twist-out feet
  • Carry case: Wheeled nylon bag with foam inserts
  • Optional extras: Connectors and A4 literature holder, sold separately
  • Use: Indoor

Magnetic connections

Magnets in the frame edges pull two lightboxes together in seconds, so you can add frames and change your layout from one event to the next. For corners and other shaped layouts, connectors give extra support, and an A4 literature holder can hang alongside for brochures. Both are sold separately.

Ready-fitted lighting

Four vertical strips of LEDs come fitted in the frame and give a cool white light (6350K) across the graphic. The power supply runs from a kettle-style lead with an EU plug, and a UK adapter is included. The lightbox is made for indoor use.

Your backlit graphic

Your design is printed by dye-sublimation on 175gsm backlit fabric and has a silicone edge that pushes into the frame channel. This version is printed on the front, with a black blockout liner on the back so no light escapes and the front looks brighter. Ask us if you want both faces printed.

Build and carry

The numbered frame parts slot together without tools, and the feet twist out from the base. It all packs into a wheeled nylon bag with foam inserts, a carry handle and a shoulder strap.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium
Assembly Tool-free

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Backlit Polyester + Stretch Polyester
Print Method Dye-sublimation

Use & Portability

Use & Portability
Indoor / Outdoor Indoor
Carry Case Wheeled case

Power & Lighting

Power & Lighting
Power 72.2W, EU plug with UK adapter
Lighting LED, 6350K

Other Specifications

Other Specifications
LED Backlit Yes
Free Standing Yes
Width (mm) 1000
Height (mm) 2020
Depth (mm) 400
Frame 80mm aluminium, white
Graphic Fabric 175gsm backlit polyester SEG

Guarantee

Guarantee
Hardware 1 year

Graphic

Graphic
Material Backlit polyester fabric, 175gsm
Print Method Dye sublimation
Finish Spreads the light evenly with no hot spots, so colours look bright and full when the lights are on.
Care Machine wash at 30°C with a mild detergent.

Frame & Hardware

Frame & Hardware
Frame 80mm aluminium, white

Reuse and recycling

  • The aluminium frame is made to be put up and taken down event after event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.
  • Ask us about printing your graphic on recycled fabric.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Instructions and technical sheets

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area.

Read our full artwork guidelines

FAQs

Can I join several together?

Yes. Magnets in the frame edges pull two lightboxes together in seconds. For corners and other shaped layouts, connectors give extra support, and these are sold separately.

What power does it need?

It uses 72.2W at 100-240V, with an EU plug and a UK adapter included.

How big is it and how does it pack?

It measures 1000mm wide, 2020mm high and 400mm deep, and weighs 8.6kg. It packs into a wheeled nylon bag with foam inserts.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.

Watch it in action
