Arena Truss Straight Section, 750mm
Drawing of two section ends with bolts and wing nuts ready to join
Drawing of two straight sections bolted end to end
Box truss straight sections built into a stand frame at an exhibition

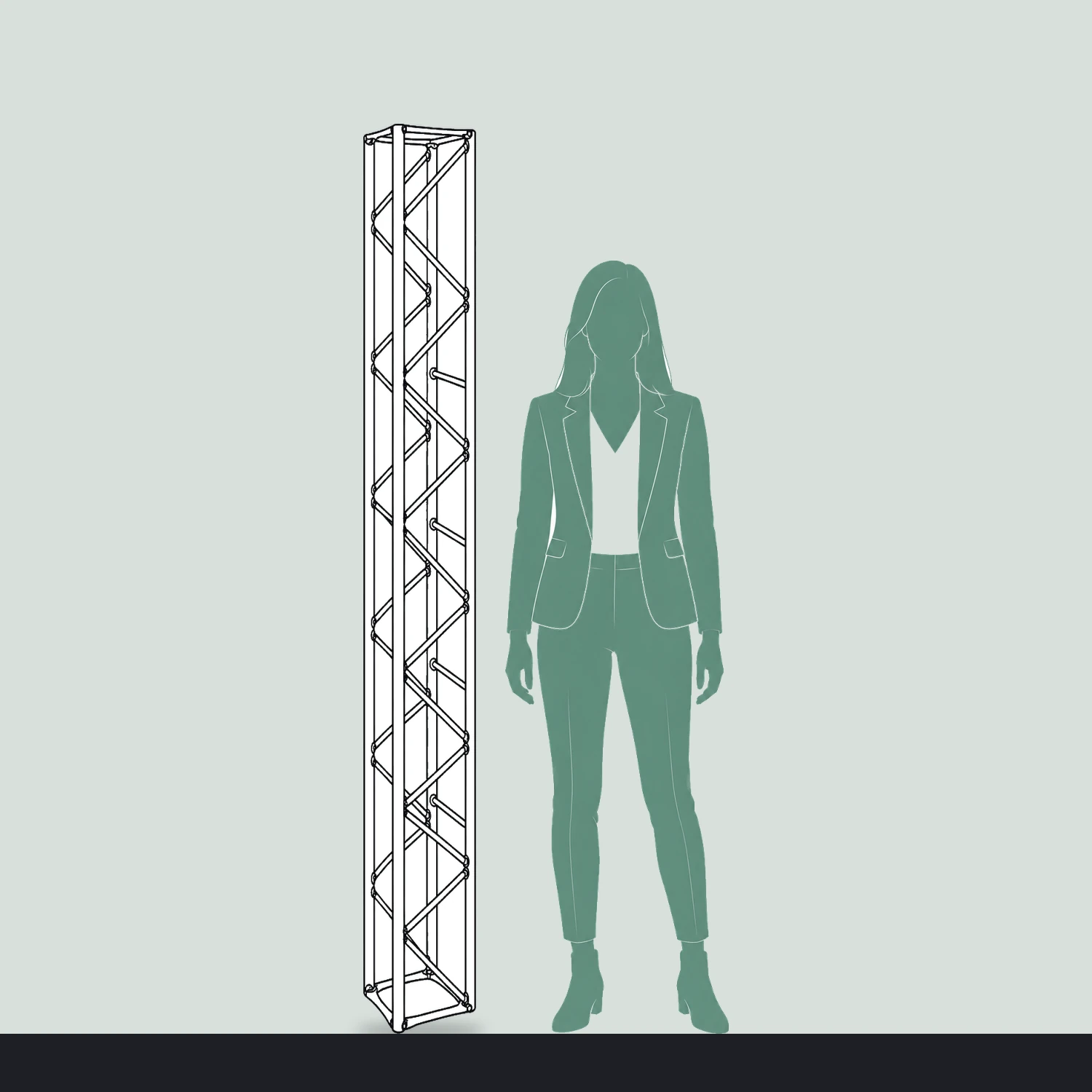

2m straight truss section size compared with a person

Arena Truss Straight Section, 2m

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£218.95 ex VATinc VAT

  • 2m straight Arena truss section
  • Light but strong aluminium, about 200mm square
  • Joins with bolts and wing nuts, no tools needed
  • Carries up to 100kg over a 2m span
  • Reusable in new layouts
Dispatched within 1-3 working days with express options available.

Ready to order?

£218.95 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We confirm your order

    We'll email you to confirm the details.

  3. Delivered to you

    Dispatched within 1-3 working days with express options available.

  4. Stand out at your event

    Set it up and you're ready for visitors.

  5. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A 2m straight length of Arena aluminium truss. Bolt lengths together with Arena corners and junctions to build gantries, frames and overhead structures for exhibition stands, showrooms and shop displays.

Tech specs

  • Assembled size: 2000mm (W) x 200mm (H) x 200mm (D)
  • Weight: 5.06kg
  • Length: 2m
  • System: Arena aluminium box truss, approx. 200mm x 200mm section
  • Material: Aluminium, natural silver grey finish
  • Fixing: Bolt and wing nut, no tools needed
  • Load: Up to 100kg over a 2m span
  • Use: Indoor

Planning your structure

Arena parts are reusable, so you can take a structure apart after an event and rebuild it in a new layout next time. Spans of up to 6m can run without an upright to support them. Printed graphics can be fixed to the truss with bungee ties. Tell us what you want to build and we will list the parts you need.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium
Assembly Tool-free

Use & Portability

Use & Portability
Indoor / Outdoor Indoor

Other Specifications

Other Specifications
Width (mm) 2000
Height (mm) 200
Depth (mm) 200

Frame & Hardware

Frame & Hardware
Frame Aluminium

Reuse and recycling

  • It is made from aluminium, so it can be used again at event after event and recycled at the end of its life.

Instructions and technical sheets

FAQs

How much weight can it carry?

It carries up to 100kg over a 2m span.

Do I need tools to put it together?

No. Sections join with a bolt and wing nut, with no tools needed.

How big and heavy is it?

It's 2000mm long with a 200mm x 200mm section, and weighs 5.06kg.

Can I hang graphics on it?

Yes. Printed graphics can be fixed to the truss with bungee ties.

How long will it take to arrive?

Dispatched within 1-3 working days with express options available. Orders placed after 2pm, or at a weekend or on a bank holiday, count from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.
