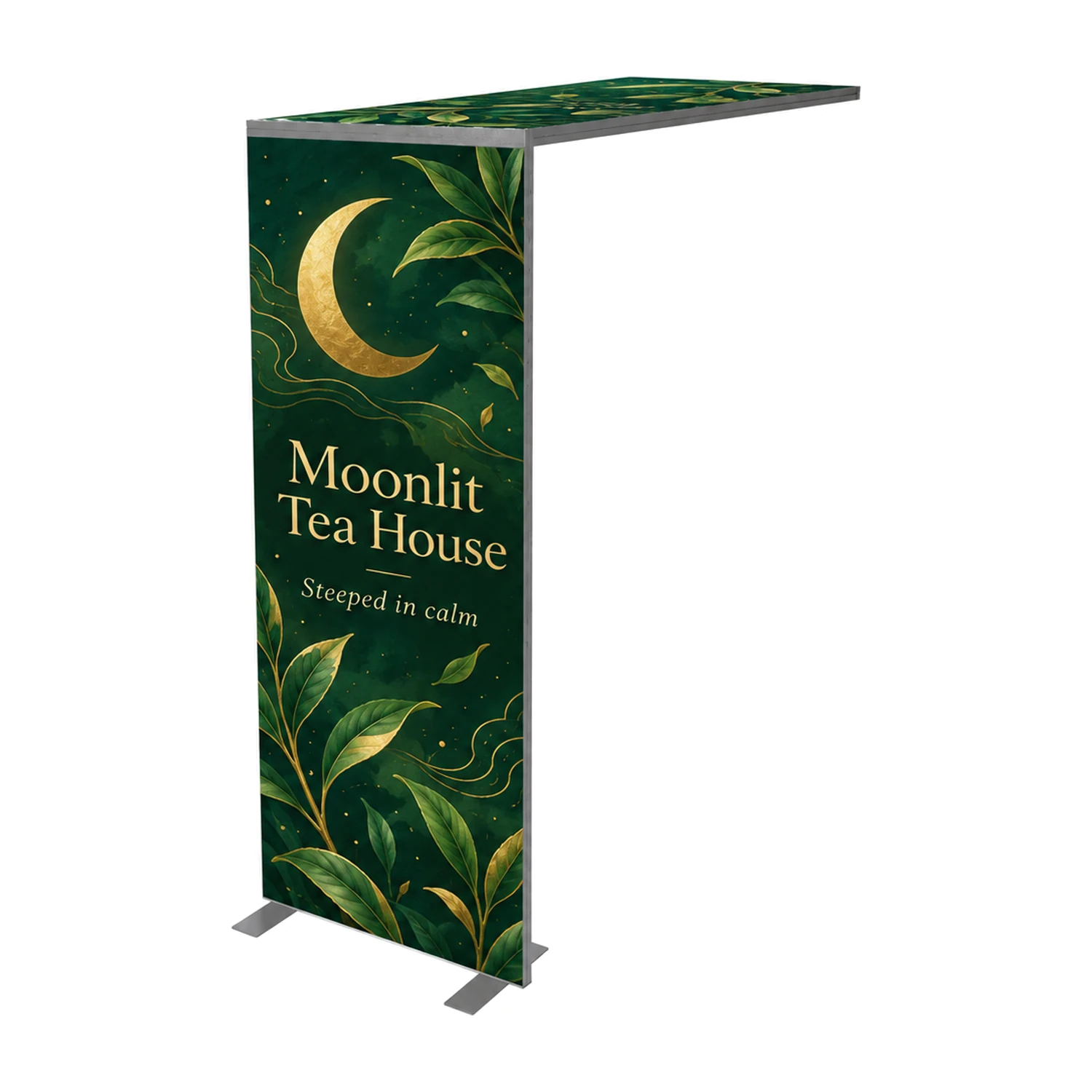

950mm x 2.55m Vector Archway Module with example artwork

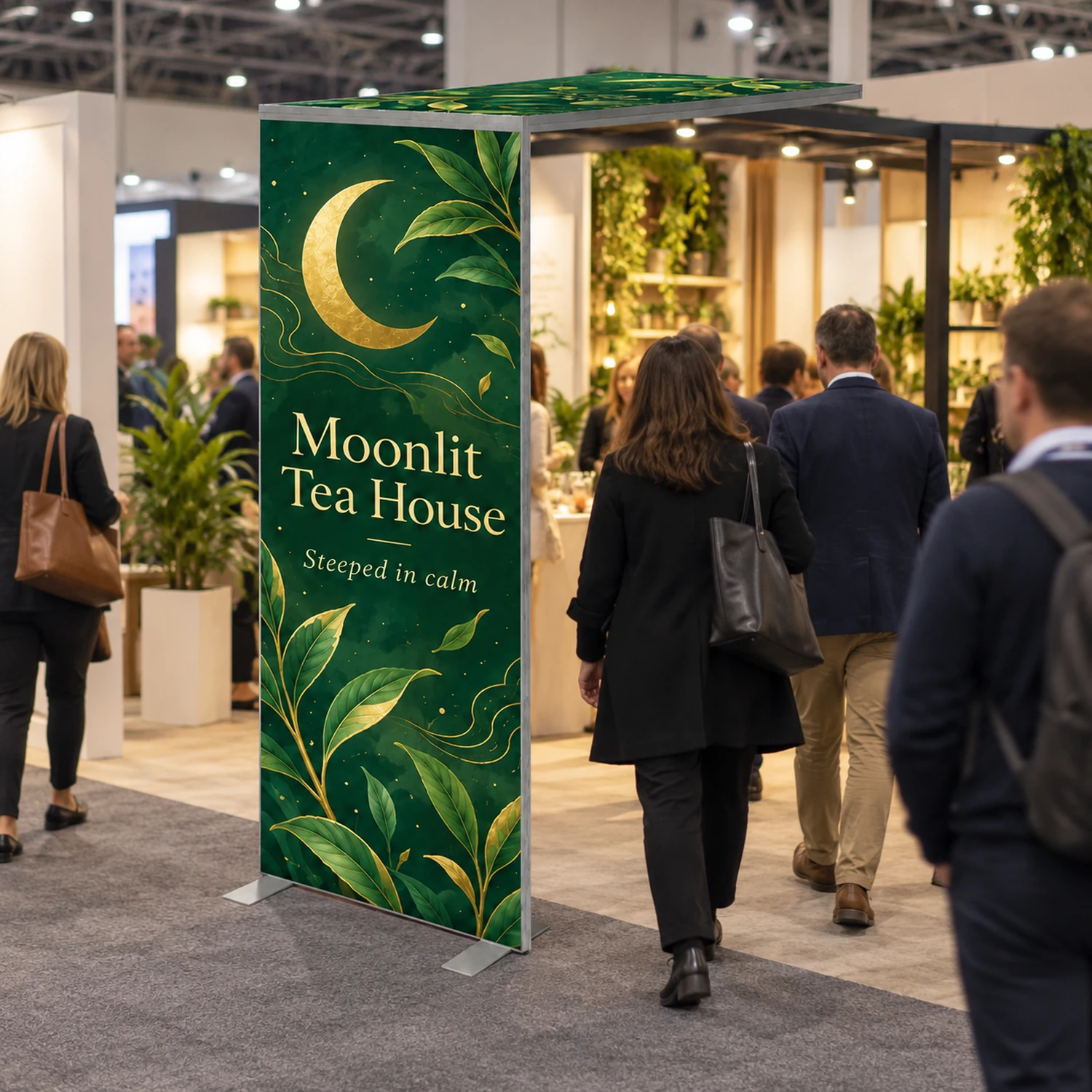

950mm x 2.55m Vector Archway Module in use at an event

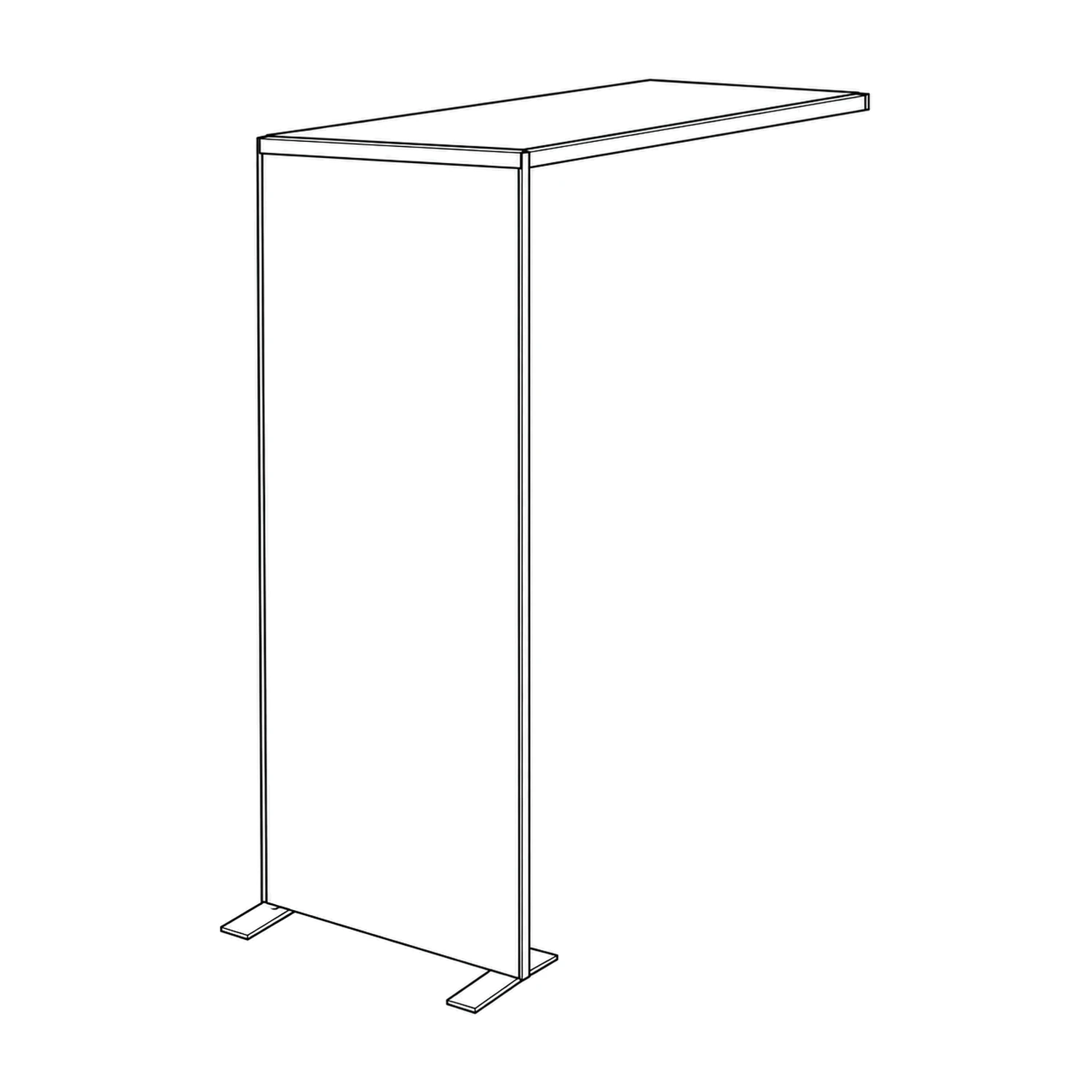

950mm x 2.55m Vector Archway Module line drawing

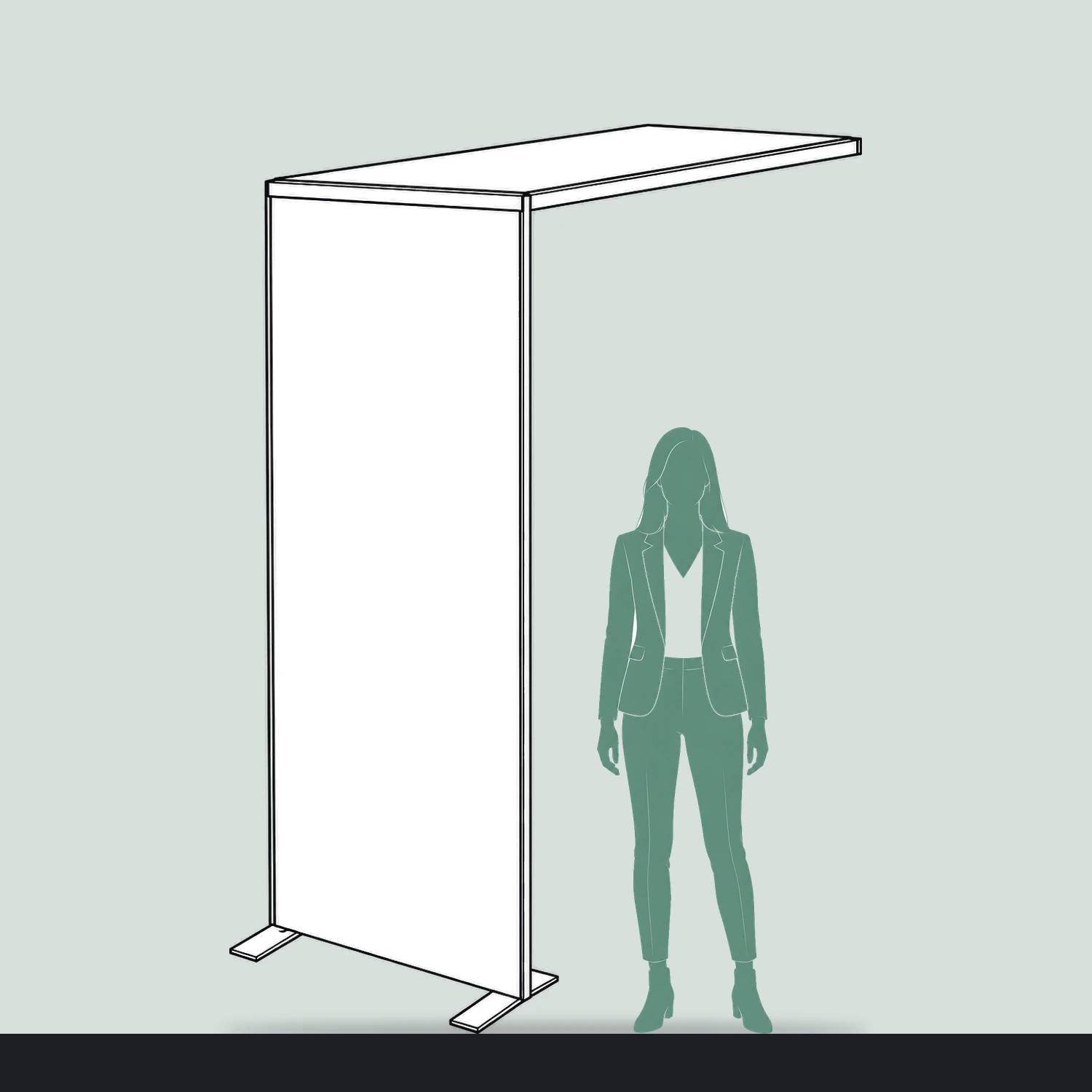

950mm x 2.55m Vector Archway Module size compared with a person

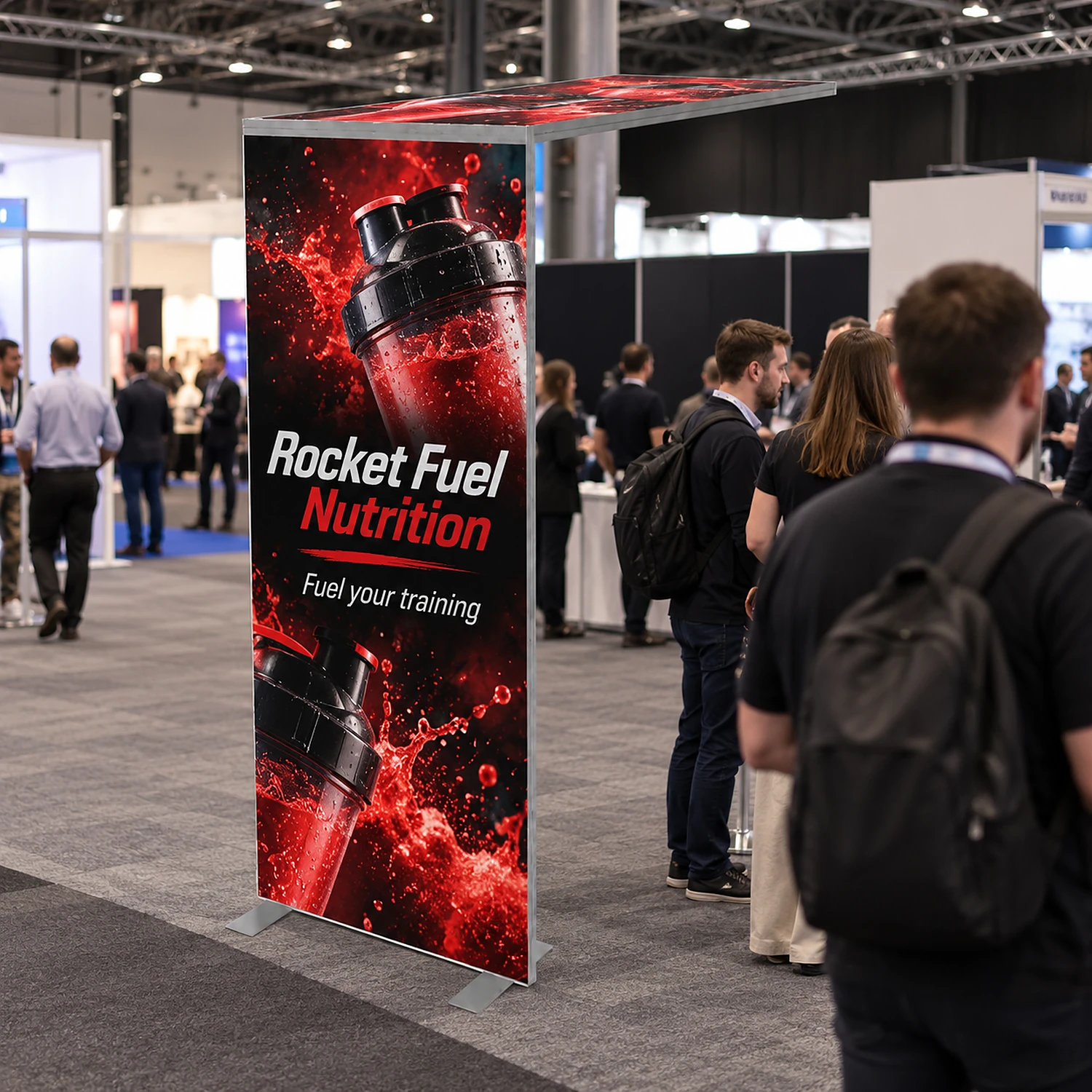

Vector Modular Display Module in use at a business expo

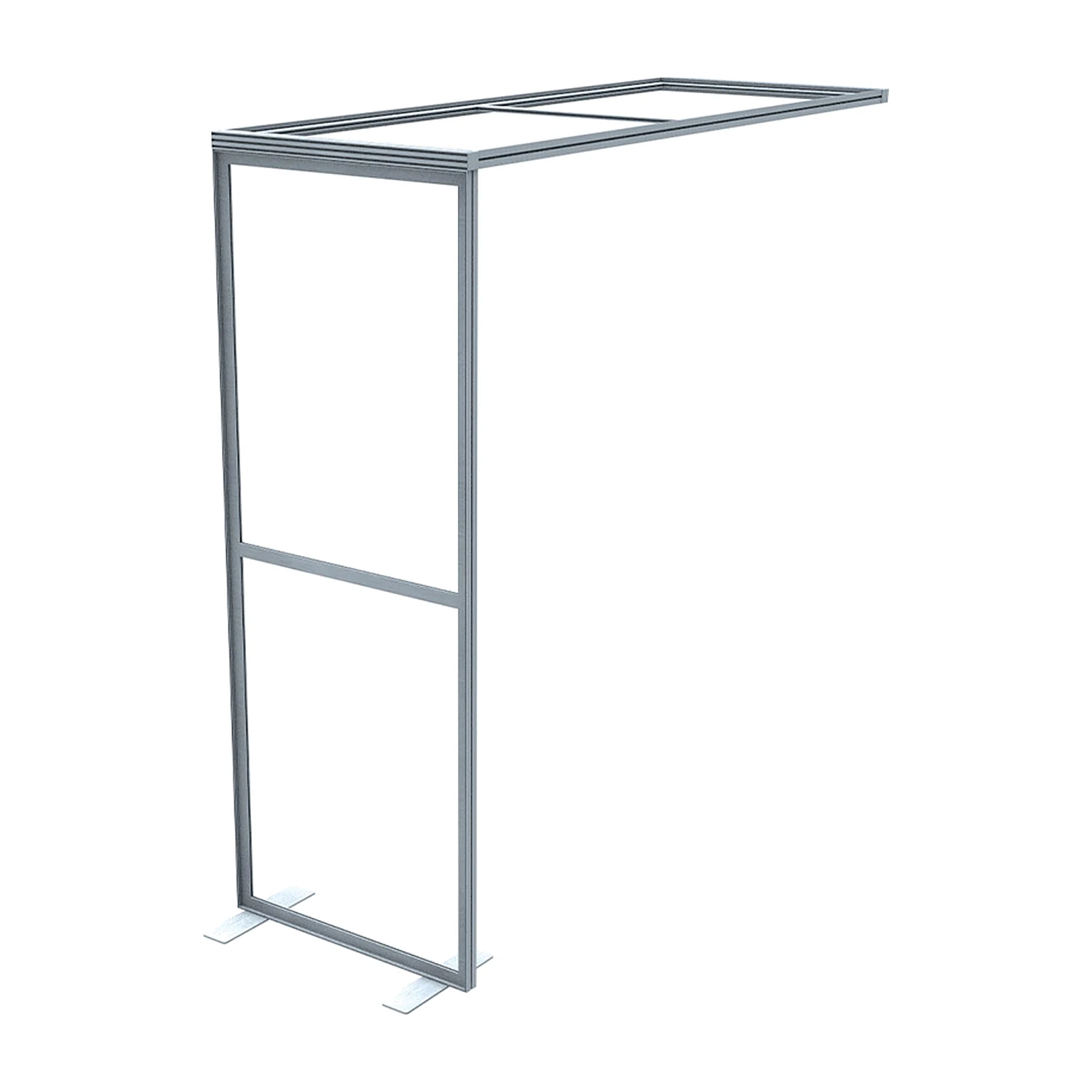

Bare aluminium frame of the archway module

950mm x 2.55m Vector Archway Module

Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.

£1,309.95 ex VATinc VAT

Free Instant Mockup
  • Archway 950mm wide x 2.55m high x 2.6m deep
  • Two frames joined by a visible top pole
  • Four printed fabric graphics for front, back, roof and ceiling
  • Integrated stabilising feet, free-standing
  • 50mm aluminium profile, built with one Allen key
All prices include printing.
FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.
Dispatched within 5 days with express options available.

Ready to order?

£1,309.95 ex VATinc VAT
In stock

Ordering several? Ask us for a quote

We can also make custom sizes and configurations to fit your space.

Prefer a tailored quote? Request one →
Rated 4.9/5 from 16 reviews We collect reviews on Trustpilot, Google and Facebook.
Guaranteed secure checkout with Stripe

How ordering works

  1. Order or get a quote

    Buy it online as it is, or ask us for a quote if you need something different.

  2. We sort your artwork

    We'll email to see if you're sending your own artwork (we'll send templates) or want us to design it for free.

  3. Approve and we print

    Once you've approved the proof, it goes into production.

  4. Delivered to you

    Dispatched within 5 days with express options available.

  5. Stand out at your event

    Set it up and you're ready for visitors.

  6. Ongoing support

    Setup help, spare parts or new graphics. Just get in touch.

A Vector archway module that makes a striking entrance or walkway through your stand, 950mm wide, 2.55m high and 2.6m deep. It is built from two separate Vector frames joined by a pole across the top, which stays on show for a clean, modular look. Your design is printed on fabric graphics for the front, back, roof and ceiling, and each one can be replaced on its own.

Tech specs

  • Assembled size: 950mm (W) x 2550mm (H) x 2600mm (D)
  • Printed sides: Single sided
  • Frame: 50mm anodised aluminium profile
  • Graphic: Stretch polyester fabric, dye-sublimation printed
  • Graphic fitting: 3mm silicone edge (SEG) pushes into the frame channel
  • Assembly: Allen key for the frame, quick-release flip bars or bolts between modules
  • Feet: Integrated stabilising feet
  • Options: Recessed spotlights, TV screen holder
  • Use: Indoor

Printed fabric graphics

Your artwork is printed by dye sublimation onto stretch polyester fabric for rich colour and fine detail. A silicone strip around the edge of each graphic pushes into the channel of the profile, giving a tight, frameless face. If the module will sit in a brightly lit hall, ask us about black-backed fabric so nothing shows through. Graphics come out easily, so you can reprint for a new event and keep the frame.

Built to stand on its own

Stabilising feet are built into the arch, so it stands securely without extra supports. Vector is built from 50mm aluminium profiles that screw together with a single Allen key. Once a module is assembled, pre-fitted quick-release flip bars or bolts join it to the next module without tools. The parts are reusable and pack into a compact box for storage and transport. Recessed spotlights and a TV screen holder can be added to make the arch work harder on your stand.

Artwork included

Every order includes FREE artwork design or proofing. Send us your artwork and we will check it before it goes to print, or our design team will create it for you at no extra cost.

Custom sizes and configurations

We can also make custom sizes and configurations to fit your space. Tell us what you need and we will put together a quote.

Construction & Assembly

Construction & Assembly
Frame Material Aluminium

Graphics & Printing

Graphics & Printing
Printed Sides Single Sided
Graphic Material Fabric
Print Method Dye-sublimation

Use & Portability

Use & Portability
Indoor / Outdoor Indoor

Other Specifications

Other Specifications
Free Standing Yes
Width (mm) 950
Height (mm) 2550
Depth (mm) 2600
Graphic Fabric Stretch polyester
Graphic Fitting Silicone edge (SEG)
Frame 50mm aluminium profile

Graphic

Graphic
Material Stretch polyester fabric, 260gsm
Print Method Dye sublimation
Finish Stretches slightly as it goes on, so it sits tight over the frame with very few creases.
Alternative Graphic Blockout polyester fabric with a black back, 280gsm: the black back stops light showing through
Care Machine wash at 30°C with a mild detergent and leave it to dry naturally. Do not tumble dry.
Care (Blockout polyester fabric with a black back) Machine wash at 30°C and leave it to air dry.

Frame & Hardware

Frame & Hardware
Frame 50mm aluminium profile

Reuse and recycling

  • The aluminium frame is modular, so it can be rebuilt in a different layout and dressed with new graphics for your next event, and aluminium can be recycled at the end of its life.
  • Your fabric graphic can be washed and reused, and when your design changes a new print fits the same frame.
  • We print by dye sublimation with water-based inks, so the colour is fused into the fabric and will not crack or peel.
  • Polyester fabric can be recycled through specialist textile recycling schemes, though not in household collections.

Download artwork templates

Design your print to the exact size with our free template. It shows the bleed, safe area and visible graphic area for this product.

FREE artwork design or proofing on every order. Send your artwork and we'll proof it, or our team will design it for you at no extra cost.

Supplying your own artwork

If you would rather send a finished file than use our free design service, set it up like this.

  • Use the template above. It is drawn at quarter size (1:4), so keep it at that size and do not change its proportions: we scale it up when we print.
  • Set your colours in CMYK and send a high quality print PDF.
  • Images look best at 72 to 125dpi at full print size, which is about 300 to 500dpi inside a quarter-size template.
  • Run your background 3mm past the cut line and keep text and logos inside the safe area.
  • Outline all fonts. Keep text at least 3mm high and lines at least 2mm thick.
  • Send one design per file. A double-sided graphic needs a file for each side.
  • Hide the instructions layer and remove the template lines before you export.

Your graphic has a thin silicone strip sewn round its edge that pushes into the frame channel, so the print is slightly larger than the area you see. The template shows both sizes: keep text and logos inside the safe area.

Read our full artwork guidelines

FAQs

How big is it when it's set up?

It measures 950mm wide, 2550mm high and 2600mm deep.

Which parts are printed?

Your design is printed on fabric graphics for the front, back, roof and ceiling, and each one can be replaced on its own.

Does it need extra supports?

No. Stabilising feet are built into the arch, so it stands securely without extra supports. The frame screws together with a single Allen key.

How long will it take to arrive?

Printed and dispatched within 5 days with express options available. The 5 working days start once you've approved your artwork. If you approve after 2pm, or at a weekend or on a bank holiday, they start from the next working day. UK delivery then takes 1-2 working days after dispatch. The estimate beside Add to basket works out the dates for you.

Is artwork design included?

Yes. FREE artwork design or proofing is included on every order. Send us your artwork and we'll check it before it goes to print, or our design team will create it for you at no extra cost. If you're doing your own, the artwork templates are in the Downloads section on this page.
